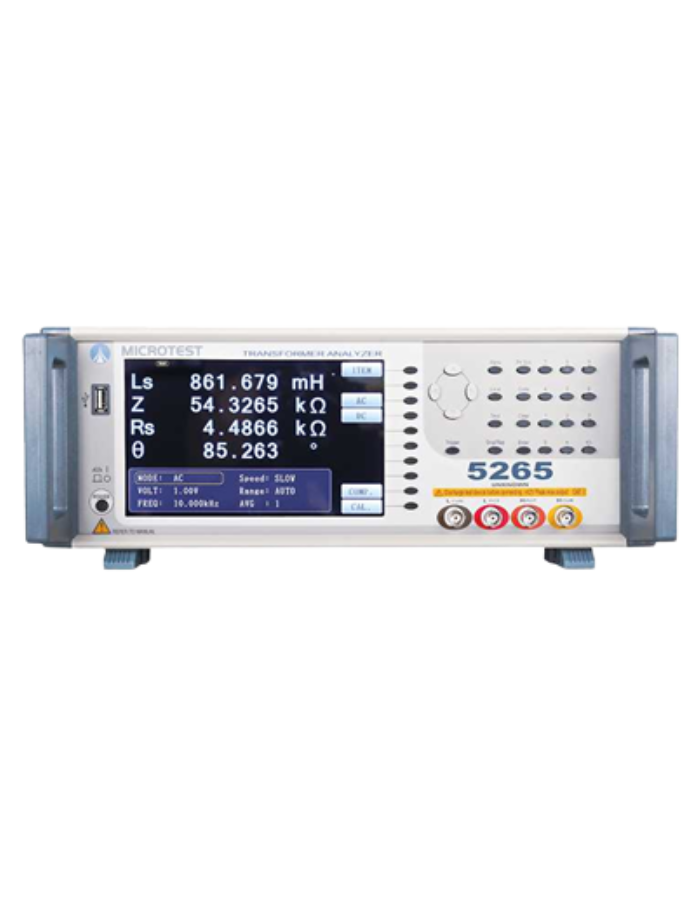

The MICROTEST 5260 Series Transformer Tester is an advanced instrument designed to measure essential parameters for transformers, including inductance, leakage inductance, DC and AC resistance, quality factor, capacitance, and turns ratio, while also detecting pin short circuits. It operates within a frequency range of 10Hz to 200k/500k/1MHz and features an integrated LCR meter mode. The tester comes with the F5620 pneumatic testing fixture, offering 20 testing channels and supporting DC bias testing up to 100mA. Additionally, customized testing fixtures are available to address specific customer requirements.

Features:

• Test Frequency: 10Hz-200kHz/500kHz/1MHz
• 20 Channels
• Built-in Meter Mode
• Simultaneously display four parameters
• Basic accuracy up to ±0.1%
• Open circuit/short circuit function

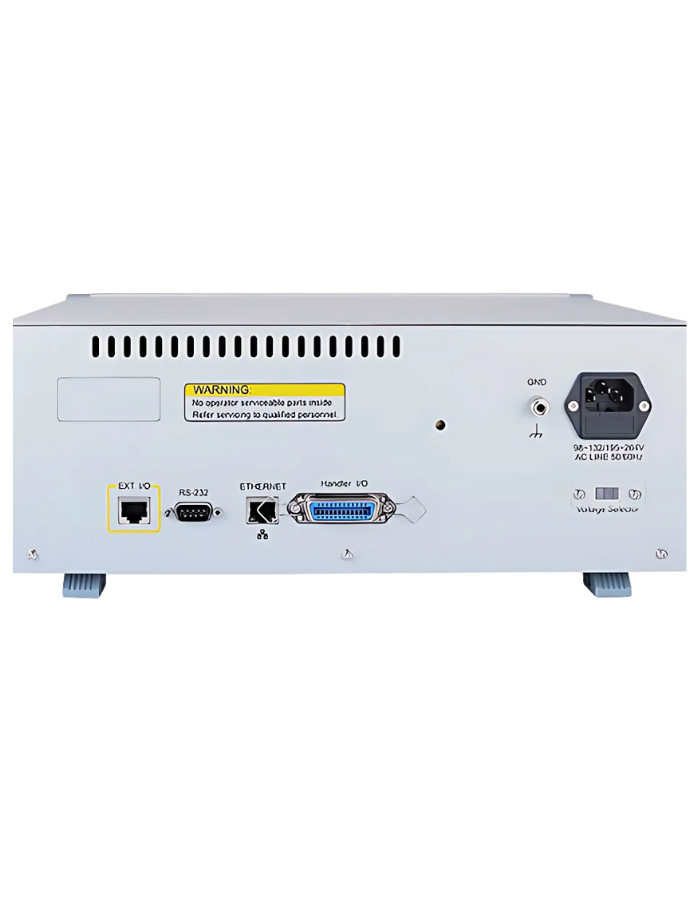

• RS-232、Handler、LAN、USB Host 、Handler
• Pneumatic fixture F5620 built-in 100mA DC Bias
• USB Host storages can storage setting files, data and capture the screen
