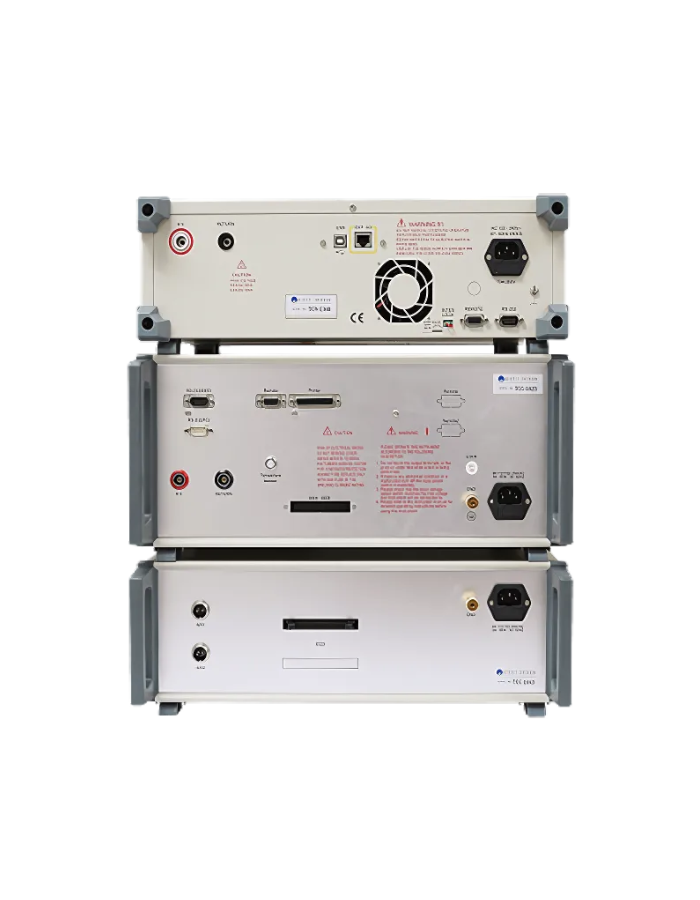

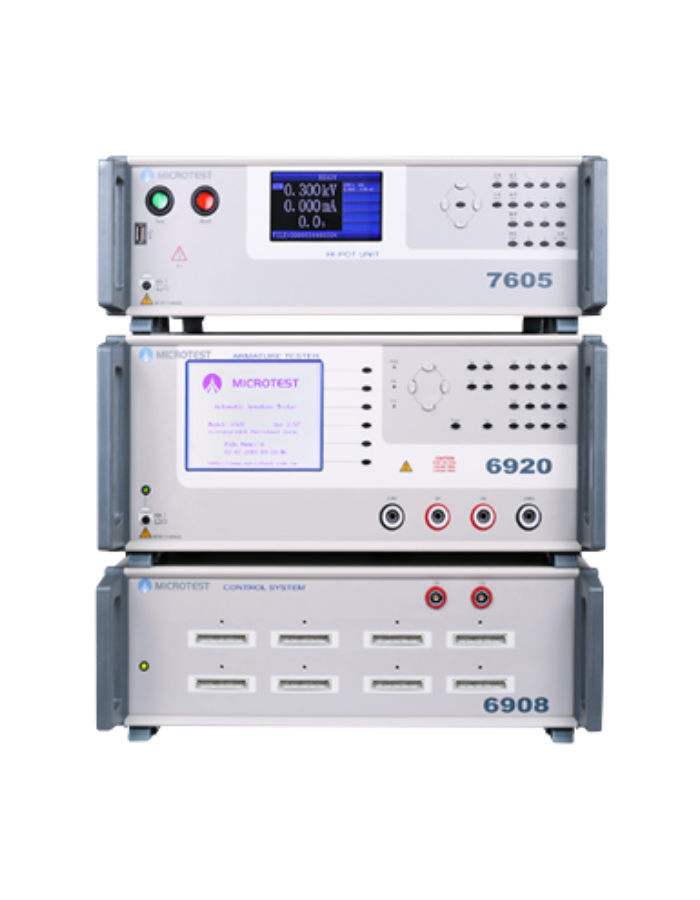

The MICROTEST MT-6920 Motor Rotor Testing System is an advanced solution designed for efficient motor rotor evaluation. This system combines the Interlayer Short-Circuit Tester (6920), High Voltage Withstand Tester (7605), and Multi-Channel Control Box (6908), with the 6920 functioning as the primary controller. It offers robust testing capabilities with 24 or 48 test channels, enabling precise measurement of welding resistance in motor rotors.

This integrated system ensures compliance with safety standards by providing high-voltage insulation testing and interlayer short-circuit assessments in a single platform. The MT-6920 supports remote programming and data storage through its PC connectivity software, allowing for real-time access to test results, seamless report generation, and direct uploading of data to a centralized database.

For tailored testing requirements, the MT-6920 can be equipped with customizable test fixtures to meet specific customer needs, and it is compatible with PLC control for enhanced operational efficiency. Experience comprehensive motor rotor testing with the MICROTEST MT-6920, designed to deliver accuracy, safety, and convenience in one powerful system.

Features:

• 24/48 Channels
• Hipot/Leakage Current
• Insulation Resistance
• Winding Layer short Test
• Resistance Welding Test
• Inductance Test
• It can test multiple sets of DUTs simultaneously
• 4-Wire DC Resistance measurement will be more accurate than others
• The Impulse/Surge with waveform comparison is a non-destructive analysis
• Chinese/English screen could be switched arbitrarily
