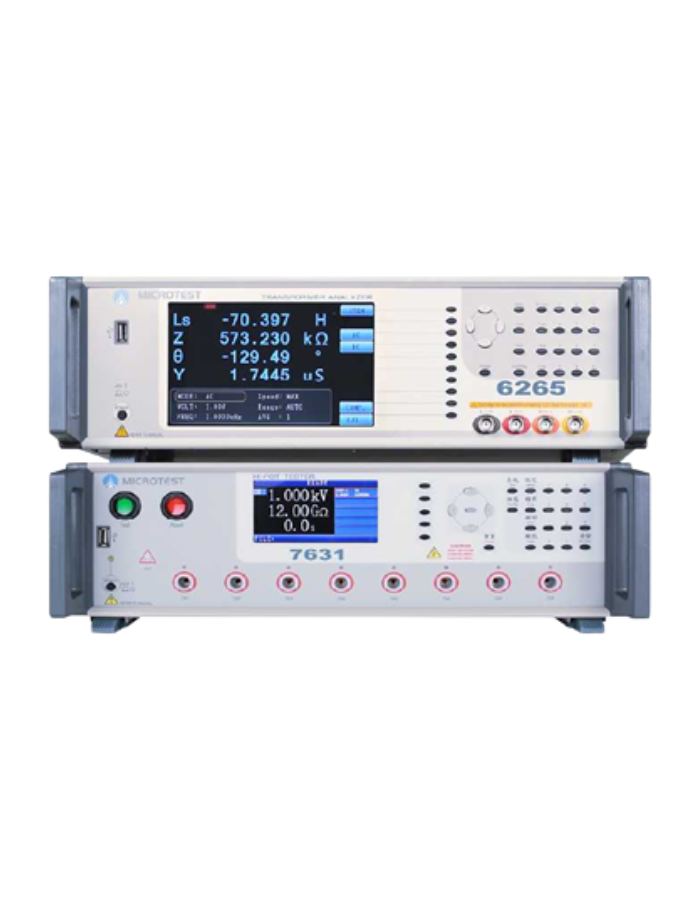

The MICROTEST 2-in-1 Transformer Integrated Test System offers a comprehensive solution by combining low-voltage electrical characteristics testing with safety compliance testing. This system features 20 testing channels and integrates both low-voltage tests—such as inductance, leakage inductance, resistance, and capacitance—with AC/DC withstand voltage insulation testing, supporting up to 5000V/6000V. It ensures efficient and convenient testing for transformer products.

For measuring inductance values, the system includes an LCR meter with selectable test frequencies of 200kHz, 500kHz, and 1MHz. It is compatible with PC software for data storage and analysis, enhancing testing efficiency and data management.

Features:

• Low Voltage Electrical Test
• Hi pot/ Insulation Test
• 20 Channels
• Test Frequency (200k/500k/1MHz)
• AC Voltage Output 5000V
• DC Voltage Output 6000V
• Insulation Resistance 12000MΩ
