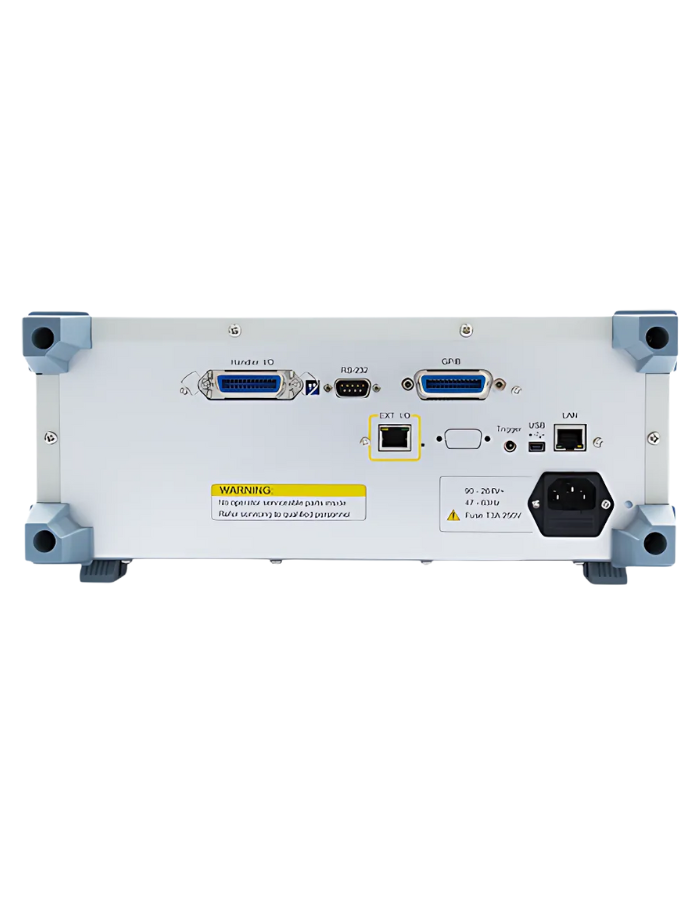

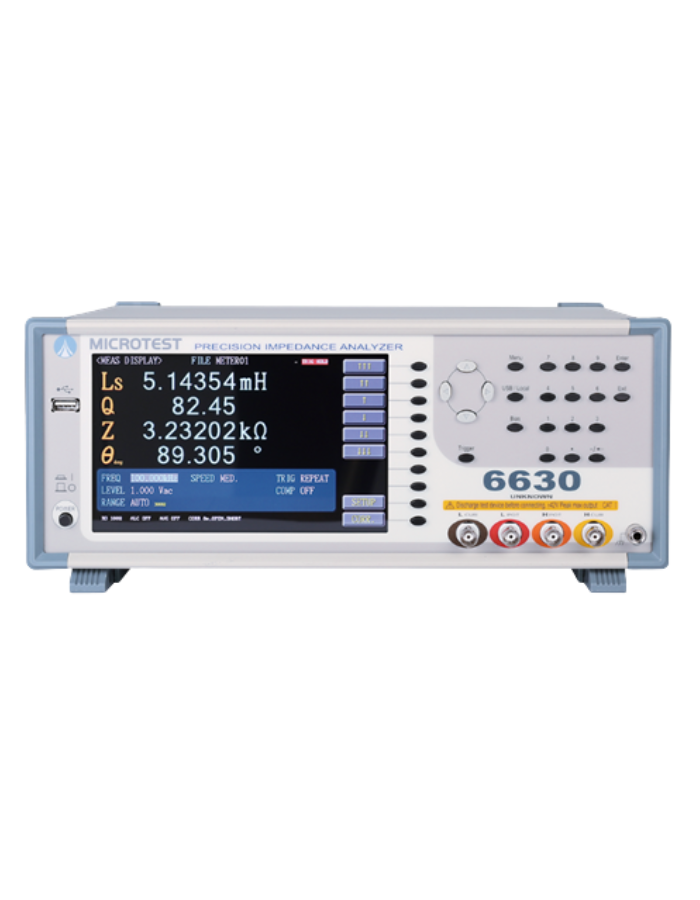

The MICROTEST 6630 LCR Tester offers a broad frequency range from 10Hz to 50MHz for precise impedance measurement of electronic components and materials. It evaluates various parameters, including impedance (|Z|), admittance (|Y|), phase angle (θ), reactance (X), resistance (R), conductance (G), susceptance (B), inductance (L), dissipation factor (D), quality factor (Q), DC resistance (DCR), capacitance (C), equivalent series resistance (ESR), relative permittivity (ε), and relative permeability (μr). With a measurement speed of up to 3 milliseconds, it is well-suited for high-speed, automated inductor testing. The device supports multiple communication interfaces—LAN, USB Host, USB Device, GPIB, and RS-232—ensuring seamless integration with automation systems and human-machine interfaces (PLC).

Features:

• Frequency range: DC, 10Hz to 1/3/5/10/20/30MHz/50MHz
• Basic accuracy up to ±0.05%
• Automatic Level Control (ALC)
• Output impedance 25Ω/100Ω, switchable
• Support meter mode and list mode
• Ultra-high measuring speed < 3ms
• Open circuit/short circuit/load correction function
• Comparator function
• BIN classification function
• Built-in the Permeability-μr
• Built-in the Dielectric constant-εr
