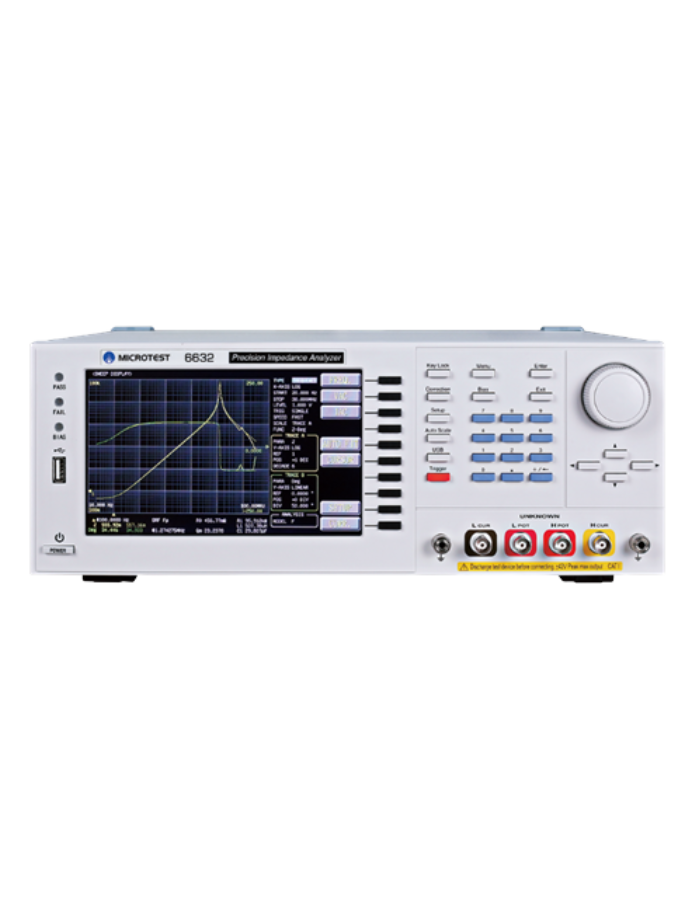

The MICROTEST 6632 Impedance Analyzer is a high-performance instrument designed for precise measurement of impedance characteristics across a wide frequency range of 10Hz to 50MHz. Ideal for testing components and materials, it provides a comprehensive set of parameters including impedance (|Z|), admittance (|Y|), phase angle (θ), reactance (X), series/parallel resistance (R), conductance (G), susceptance (B), inductance (L), dissipation factor (D), quality factor (Q), DC resistance (DCR), capacitance (C), equivalent series resistance (ESR), relative permittivity (ε), and relative permeability (μr).

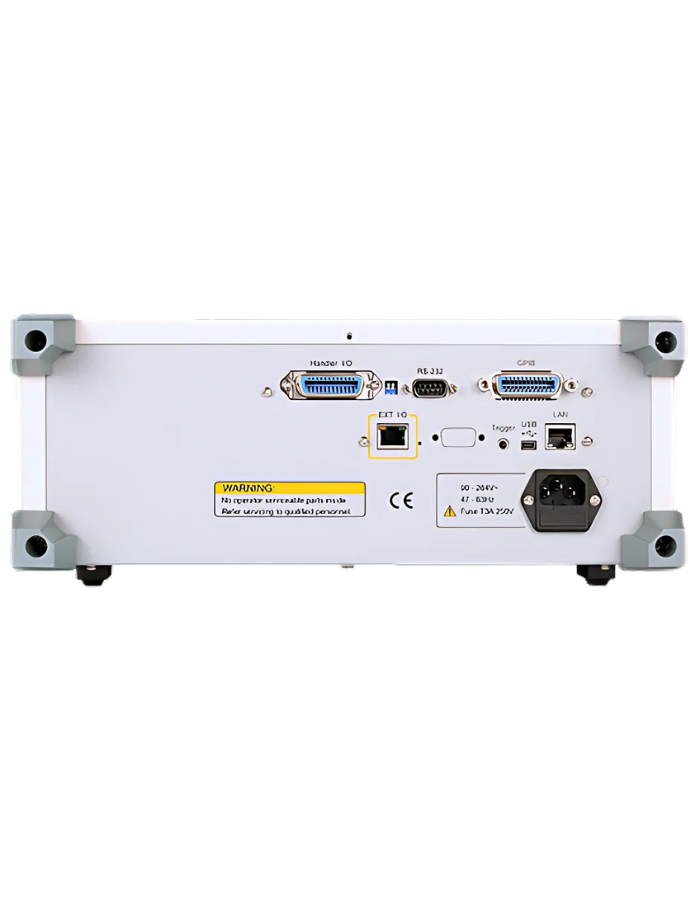

With the flexibility of both Meter Mode and Sweep Analysis Mode, the MICROTEST 6632 delivers results in numeric or graphical formats, making it versatile for a wide range of applications. It also offers seamless integration with automation setups through LAN, USB (Host/Device), GPIB, and RS-232 communication interfaces, enabling smooth data exchange with external devices or PLC systems.

Whether you’re involved in R&D, quality control, or production testing, the MICROTEST 6632 Impedance Analyzer is your ideal solution for accurate, reliable, and efficient impedance analysis.

Features:

• Frequency range: DC, 10Hz to 1/3/5/10/20/30MHz/50MHz
• Basic accuracy up to ±0.08% (typical ±0.05% )
• Automatic Level Control (ALC)
• Output impedance 25Ω/100Ω, switchable
• Support meter mode and list mode, sweep mode
• Built-in DC Bias voltage ±12V
• Ultra-high measuring speed < 3ms
• Open circuit/short circuit/load correction function
• Comparator function
• BIN classification function
• Built-in the Permeability-μr
• Built-in the Dielectric constant-εr
