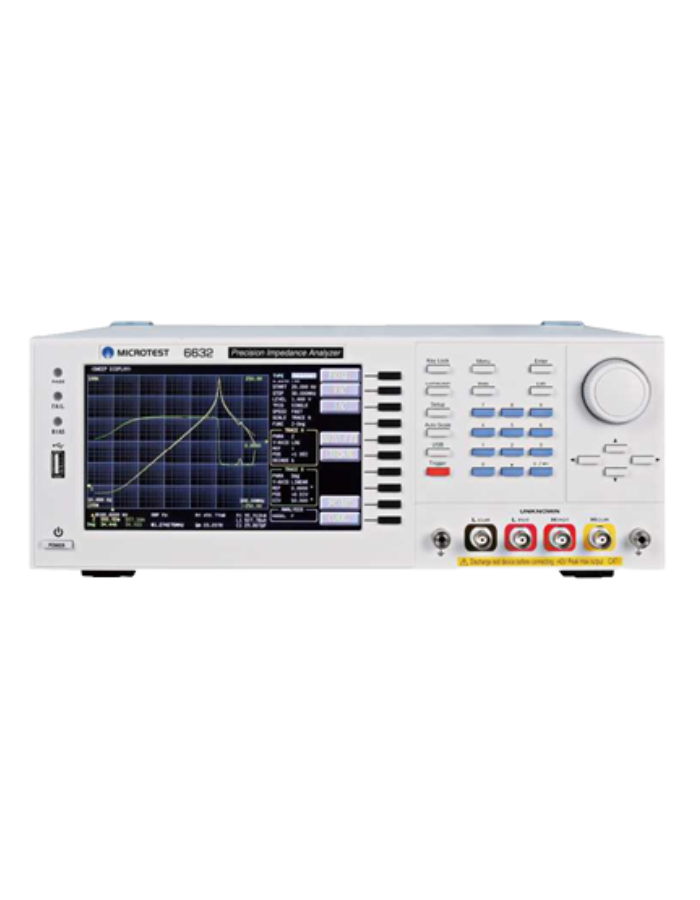

The MICROTEST 6632S Impedance Analyzer offers a wide frequency range of 10Hz to 50MHz for measuring the impedance characteristics of components and materials. It supports Equivalent Circuit Analysis to examine the impact of parasitic components on impedance. The measured parameters include |Z| (impedance), |Y| (admittance), θ (phase angle), X (reactance), R (series/parallel resistance), G (conductance), B (susceptance), L (inductance), D (dissipation factor), Q (quality factor), DCR (DC resistance), C (capacitance), ESR (equivalent series resistance), ε (relative permittivity), and μr (relative permeability).

The analyzer supports both Meter mode and Sweep Analysis mode, allowing measurement results to be displayed in numeric or graphical formats. It is equipped with LAN, USB Host, USB Device, GPIB, and RS-232 communication interfaces, making it compatible with automation equipment and human-machine interfaces (PLC).

Features:

• Frequency range: DC, 10Hz to 1/3/5/10/20/30MHz/50MHz
• Basic accuracy up to ±0.08% (typical ±0.05%)
• Equivalent Circuit Analysis
• Automatic Level Control (ALC)
• Output impedance 25Ω/100Ω, switchable
• Support meter mode and list mode, sweep mode
• Built-in DC Bias voltage ±12V
• Ultra-high measuring speed < 3ms
• Open circuit/short circuit/load correction function
• Comparator function
• BIN classification function
• Built-in the Permeability-μr
• Built-in the Dielectric constant-εr
