The MICROTEST 6367 LCR Meter offers a frequency range of 10Hz to 1MHz and measures parameters including |Z| (impedance), |Y| (admittance), θ (phase angle), X (reactance), R (series/parallel resistance), G (conductance), B (susceptance), L (inductance), D (dissipation factor), Q (quality factor), DCR (DC resistance), and C (capacitance). It supports various communication interfaces such as RS-232, Handler, LAN, USB Host, and GPIB, and allows for data storage via USB. With optional PC connection software, it also offers sweep analysis capabilities. The MICROTEST 6367 is an excellent choice for basic impedance measurements of electronic components.

Features:

• Test Frequency 10Hz-1MHz
• Output Impedance 100Ω
• Open Circuit/Short Circuit
• Meter Mode
• List Mode
• 7.0″ TFT, 800×480 color screen
• Four Parameters Displayed Simultaneously
• Comparator/BIN
• Basic Accuracy ±0.05%
• Using Graphical Analysis by PC Link

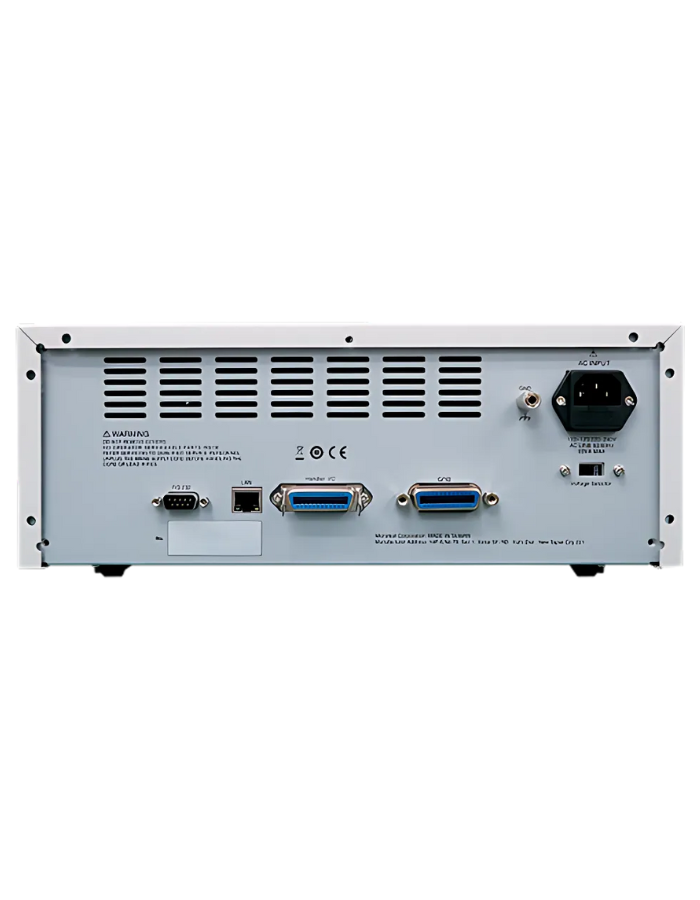

• RS-232、Handler、LAN、USB Host 、Handler、GPIB
