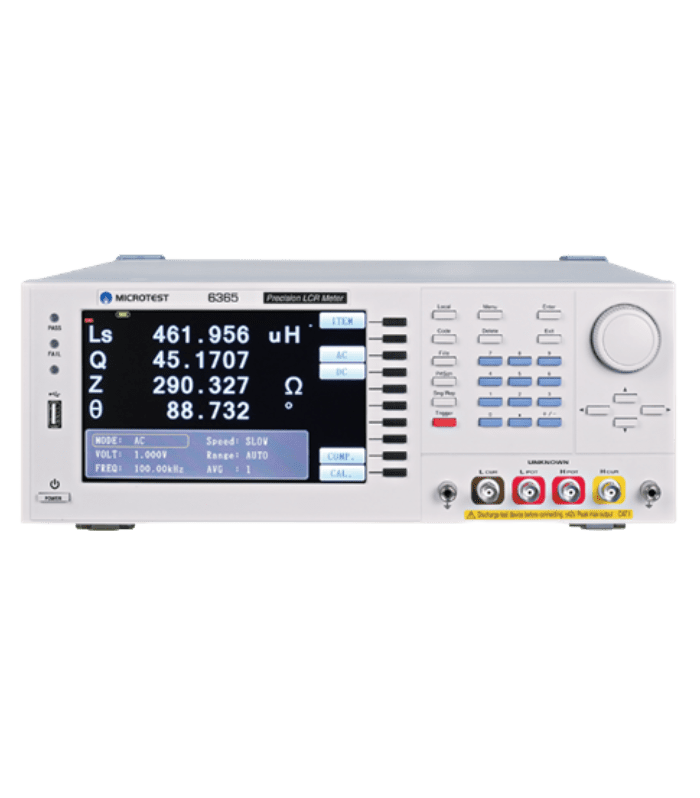

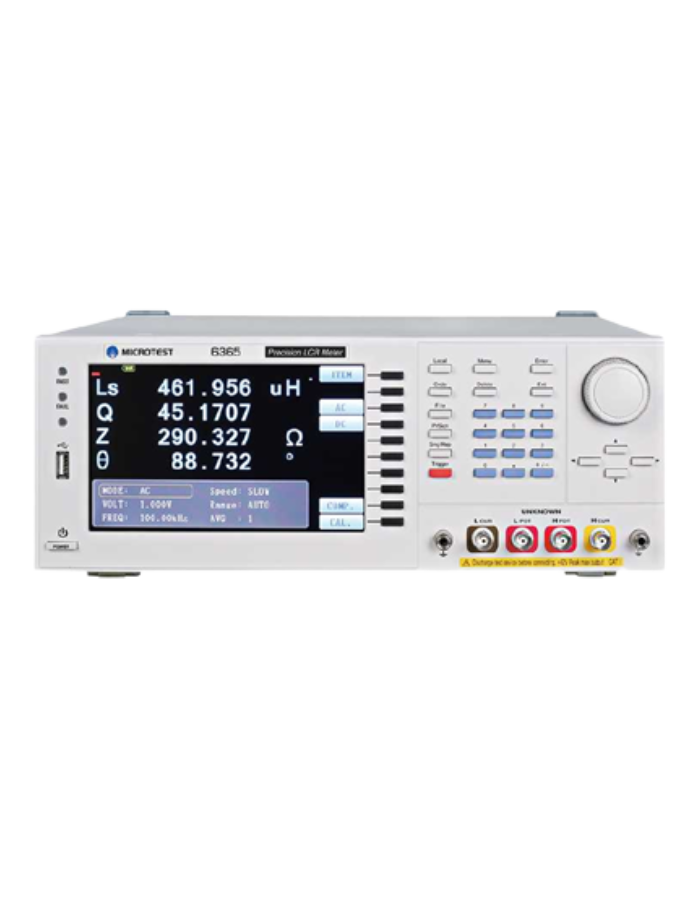

The MICROTEST 6365A/6367A LCR Meter offers a frequency range of 0.1Hz to 200kHz/1MHz, making it ideal for applications such as electrochemical impedance and battery material testing. Its extremely low starting frequency of 0.1Hz allows for precise measurement of parameters including |Z| (impedance), |Y| (admittance), θ (phase angle), X (reactance), R (series/parallel resistance), G (conductance), B (susceptance), L (inductance), D (dissipation factor), Q (quality factor), DCR (DC resistance), and C (capacitance).

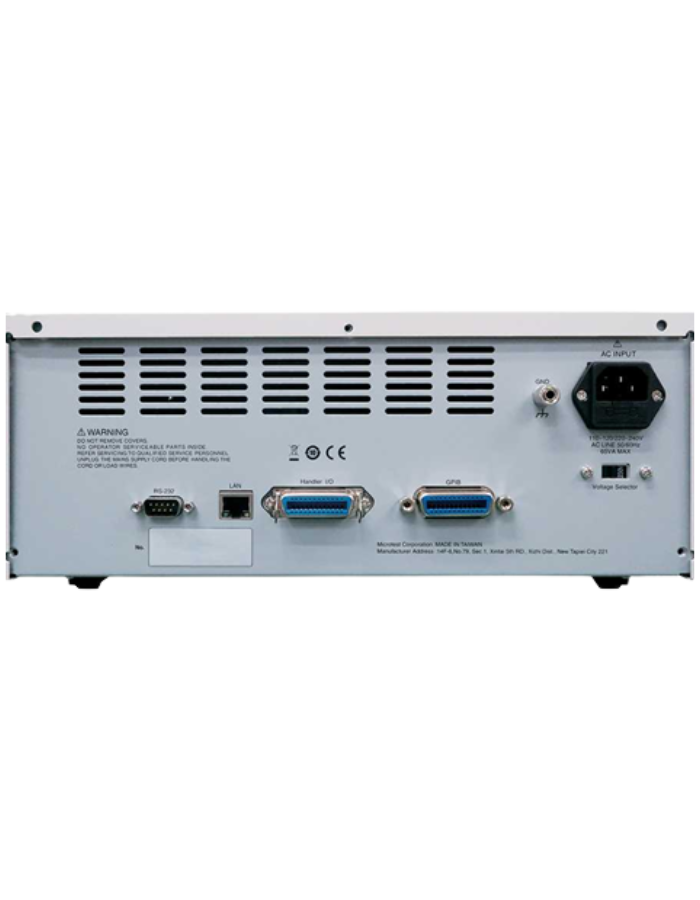

The meter supports communication interfaces including RS-232, Handler, LAN, USB Host, and GPIB, and enables storage of test screens and data via USB. Additionally, with optional PC connection software, it offers sweep analysis capabilities.

Features:

• Ultra Low Frequency 0.1Hz-200k/1MHz
• Output Impedance 100Ω
• Open Circuit/Short Circuit
• Meter Mode
• List Mode
• 7.0″ TFT, 800×480 color screen
• Four Parameters Displayed Simultaneously
• Comparator/BIN
• Basic Accuracy ±0.05%
• Using Graphical Analysis by PC Link
• RS-232、Handler、LAN、USB Host 、Handler,GPIB
