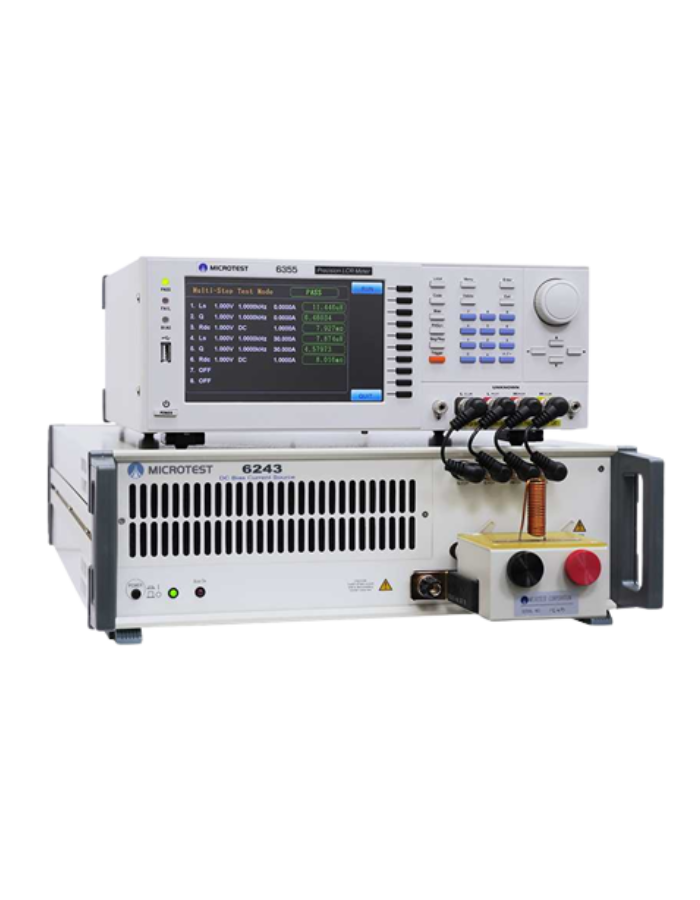

DC Bias Current Test System 6350+ Series
The 6355/6356, in combination with the 6243H/6243/6223, offers a frequency response range from 100Hz to 200kHz/500kHz and a maximum output current of 640A/320A/120A. These systems are designed for testing inductors, coils, ferrites, and core saturation currents.
Features:
- Frequency Response 100Hz-200k/500kHz
- Supports maximum output DC bias current of 640A/320A/120A
- DCR measurement function
- Can sustain maximum power output for long periods of time
- Output impedance: 100Ω
- Open/short circuit calibration function
- Supports meter measurement mode/multi-step list testing
