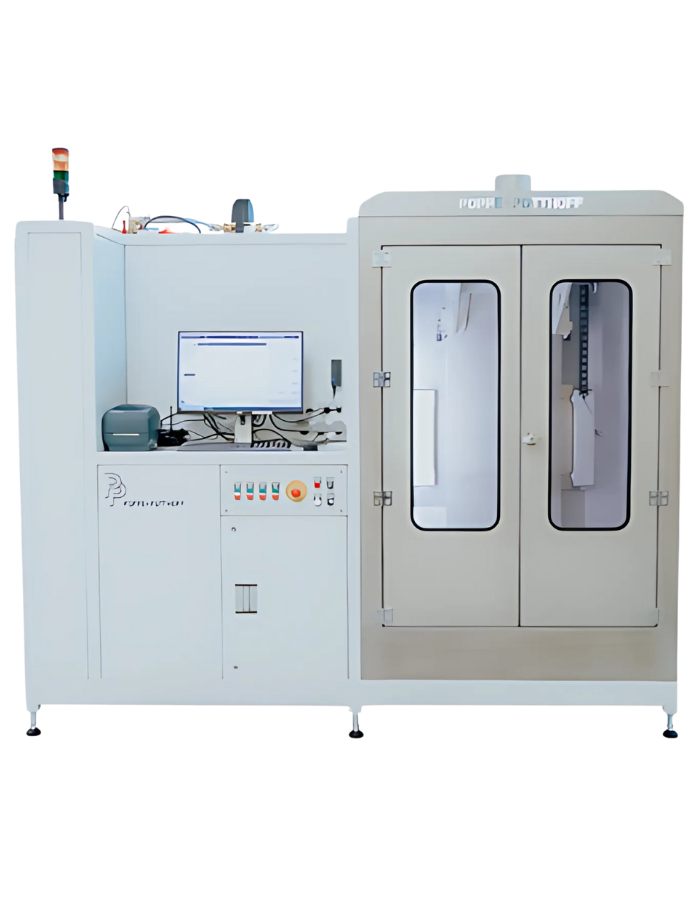

Pressure test bench for hoses with laser measurement

The self-sufficient test stand supports pressure drop testing on hoses, burst pressure tests, and proof pressure tests. Our unique wear-free precision pressure control approach enables fully programmable pressure control up to 60 bar. This approach is particularly effective for large expansion volumes and is extremely accurate and consistent. A hydraulic pressure intensifier takes over, allowing for precise pressure ramps of up to 600 bar over 60 bar. The test stand can be equipped with an automated length, torsion, and strain measurement system. The information is saved instantly in the system, allowing for quick and efficient verification.
Additionally, the system can be equipped with quick-release couplings (adapters), which eliminates the need to prepare the test item ahead of time.

Performance Data

Measurement of elongation, twisting and torsion under pressure
Measuring the change in length with a displacement measuring system (HBM)
Integration of label printer and magnetic card laser (provided by Rehau)

• Pressure test according to DIN EN ISO 1402
• Cooling circuit with external cooling to 23°C ±3
• Media temperature control to 70°C +5/-0 and tank insulation
• Precision pressure control process especially for large expansion volumes
• Quick coupling system for test specimens
