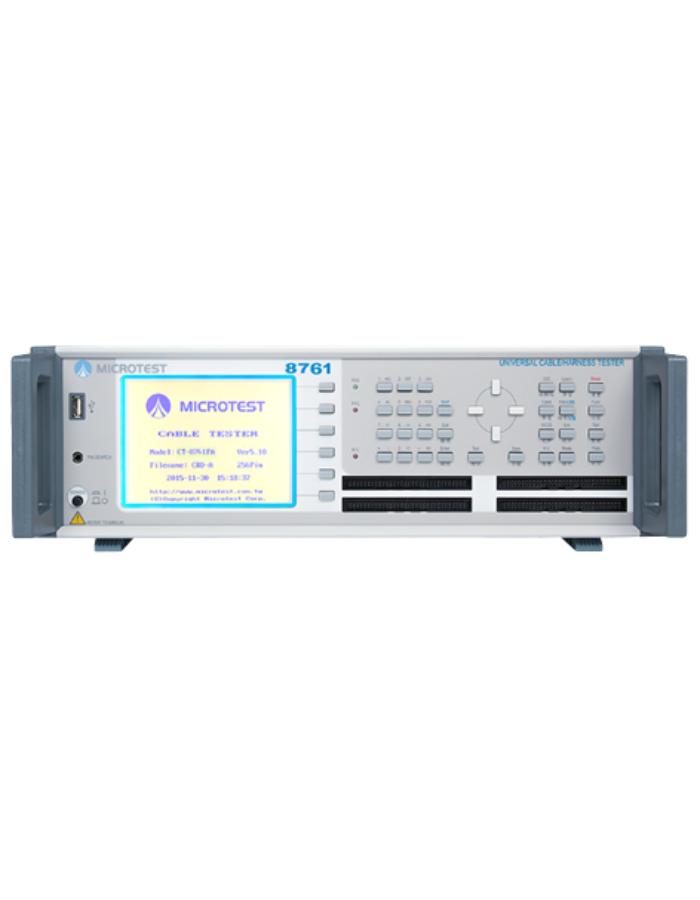

For comprehensive USB Type-C cable and connector testing, the MICROTEST 8761NAC is the ideal solution. Utilizing advanced four-wire measurement technology, it ensures precise and reliable testing results. The tester features automatic detection of USB Type-C loop orientation for connectors, enhancing testing efficiency. It supports a maximum AC withstand voltage of 700V and a maximum DC withstand voltage of 1000V, making it suitable for a wide range of applications.
Equipped with the FX-000C28 2-in-1 current source expansion box, the MICROTEST 8761NAC can perform essential tests including Continuity Test, open/short circuit detection, safety withstand voltage insulation testing, RA resistance measurement, and filtering capacitor evaluation for USB Type-C cables and connectors.
Additionally, by selecting the FX-000C28 expansion box, users can conduct 5A voltage drop internal resistance testing and read VDO codes from the E-Marker IC on USB Type-C cables, ensuring the highest quality and reliability in your USB Type-C products.

Features:

• • 4-wire measurement conductance 1mΩ-52Ω
  • Test pin 64/128
  • E-Marker IC Test
  • Voltage Drop Test (5A)
  • Open/Short
  • Continuity Test
  • AC/DC Hipot Test
  • DC insulation
  • Support bar code scan and print function
  • Automatically identify the normal or reverse plugin of wire or connectors
