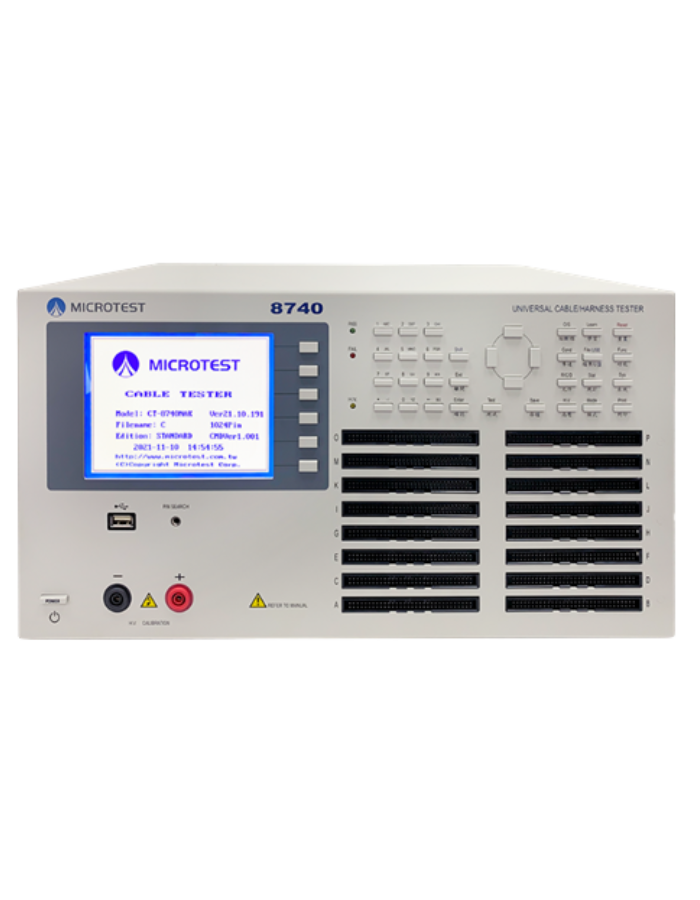

The MICROTEST 8740K Series Cable Harness Tester uses two-wire measurement technology, making it ideal for applications where extremely low resistance measurements are not necessary and cost efficiency is important. It offers testing for continuity, open/short circuits, AC/DC safety withstand voltage, insulation resistance (IR), and components such as resistors, capacitors, and diodes. The device allows for up to 1024 selectable testing points, with a maximum AC withstand voltage of 700V and a maximum DC withstand voltage of 1000V. It also features PC connectivity and BAR Code scanning, making it well-suited for automated testing in wire and connector production lines.

Features:

• • Test pin 1024
  • Number of test file up to 500 sets
  • Open/Short
  • Continuity Test
  • AC/DC Hipot Test
  • DC insulation
  • Quick conductance
  • Multiple DUT test
  • Support bar code scan and print function
  • Automatically identify the normal or reverse plugin of wire or connectors
