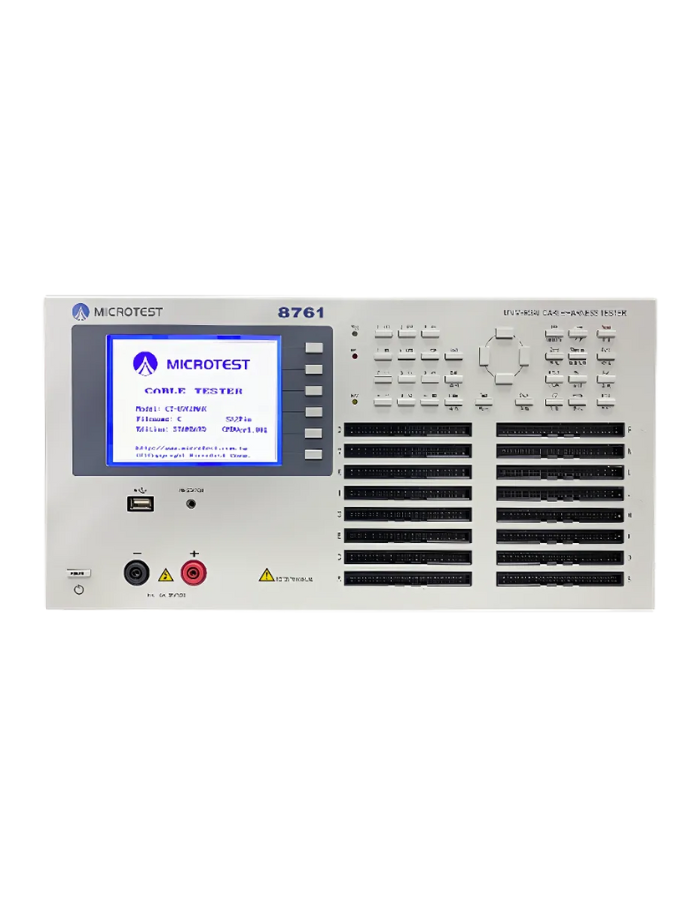

The MICROTEST 8761K Series Cable Harness Tester uses precise four-wire measurement technology to thoroughly test wire harness products, achieving a low resistance level of 1mΩ. The device is capable of Low Resistance Scanning Test ranging from 10mΩ to 52Ω. It tests continuity impedance, open/short circuits, AC/DC safety withstand voltage, insulation resistance (IR), and components like resistors, capacitors, and diodes. Also providing DC insulation. You will be having 512 selectable testing points, with a maximum AC withstand voltage of 700V and a DC withstand voltage of 1000V. It supports PC connectivity and BAR Code scanning, making it perfect for automated production lines.

Features:

• • 4-wire measurement Cond. Resistance 1mΩ-52Ω
  • Low Resistance Scanning Test 10mΩ-52Ω
  • Test pin 512
  • Number of test file up to 500 sets
  • Open/Short
  • Continuity Test
  • AC/DC Hipot Test
  • DC insulation
  • Quick conductance
  • Multiple DUT test
  • Support bar code scan and print function
