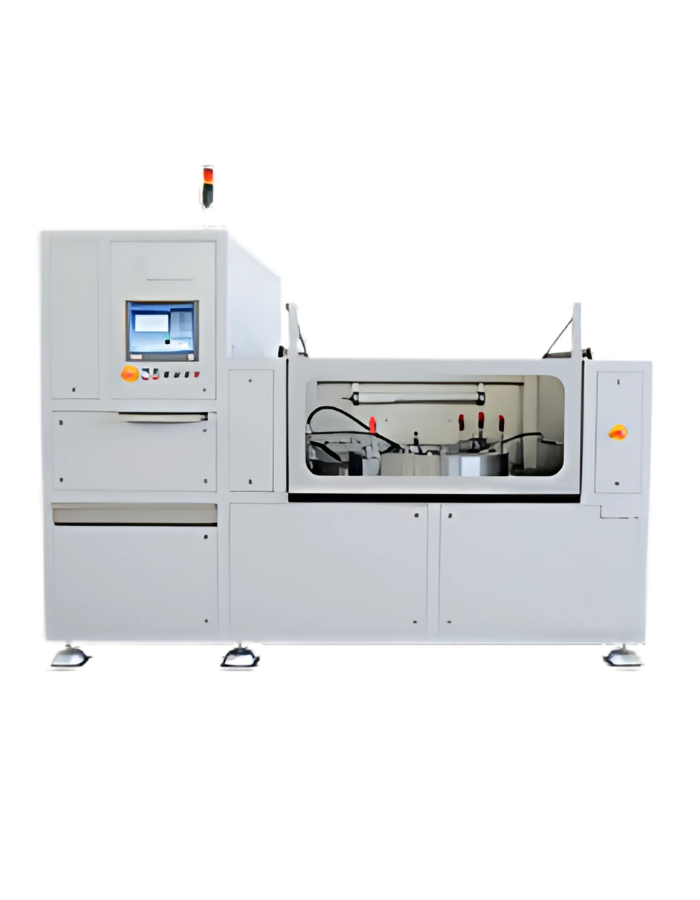

Leak test bench PPM SF6

Leak test bench PPM SF6

Automatic | hose for | workpieces

With the cleaning and tightness test stand, hoses up to 10 meters in length and 1,300 bar of testing pressure can be tested.

This test stand is suitable for tightness testing on rails; the pressure is generated by a pressure converter. The high-pressure medium contains SF6, and the vacuum chamber’s minimal leakage is detected with an appropriate laser sensor.

The clamping device is positioned inside the test chamber. It can be used with practically any style of rail due to its versatility. Manual adjustment of the rails is accomplished using couplings and high-pressure pipes. Testing and clamping are both automated operations.

The control is done by Siemens PLC. A touch panel is an input and display device. It can also be operated with a keyboard. Each important measurement result is presented.

Performance data:

  • Test pressure up to 2,700 bar
  • Pressure holding time
  • variable Leak rate measurement
  • Various test points configurable
  • Automatic clamping of the components
