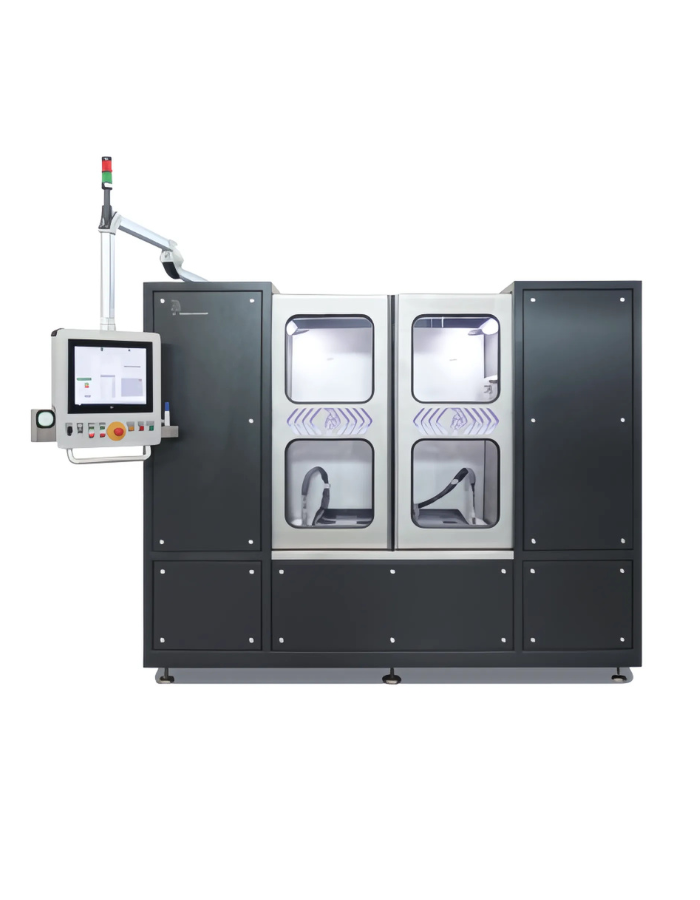

Flow leak test bench PPM

Flow leak test bench PPM

for pipes | for automotive applications | for valves

The Poppe + Potthoff leak test equipment can be used to test automotive components, valves, cast parts, and a variety of other components, assemblies, and pressure vessels for leak tightness.
This system is designed with a vacuum unit, low-pressure or high-pressure module for leakage and leakage testing, depending on the test requirement.
Pressure testing up to a maximum of 1,000 bar are permitted on a variety of components using this technology.
Using a pressure convertor, the appropriate pressure points are approached and maintained for the predetermined amount of time.

Additionally, the method permits the test specimen to be subjected to impulse pressure. Both sinusoidal and trapezoidal curves can be employed for conducting these tests.

Performance data:

  • Pressure generation: 10 to 1.000 bar, by means of a pressure convertor
  • Fine control: 0 to 50 bar
  • Pressure change test up to 1,000 bar
  • individual parameter settings
  • Data visualization using LabView
