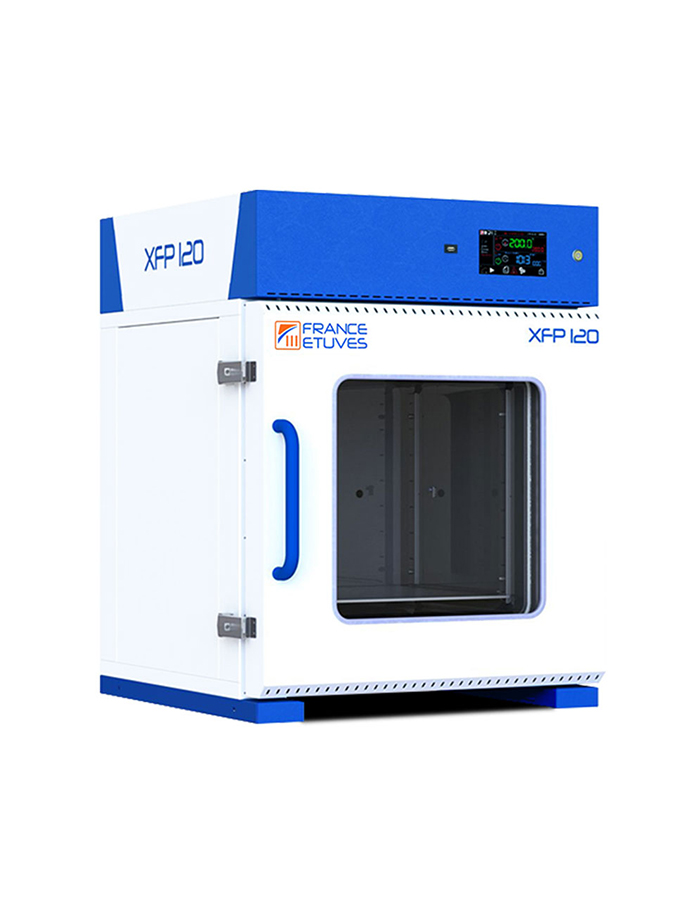

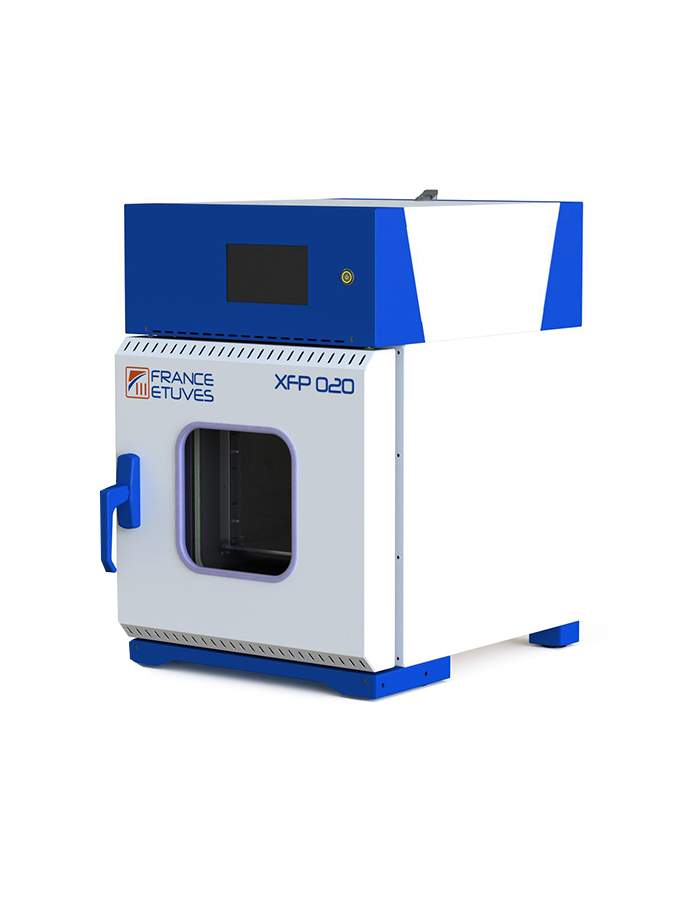

XFP Vacuum Oven Professional

XFP Vacuum Oven Professional

Standard maximum temperature: 200°C**

Vacuum measuring range: Vacuum level depending on your vacuum pump. Standard vacuum level up to 1 mbar (absolute pressure), 10-2 mbar in option

Our Vacuum ovens XFP are suitable for drying* of sensitive products, thermal treatments of oxidizable materials, quick drying of powders and granulate… in pharmaceutical, cosmetics, plastics, electronics, chemical, agrifood… laboratories or industries.

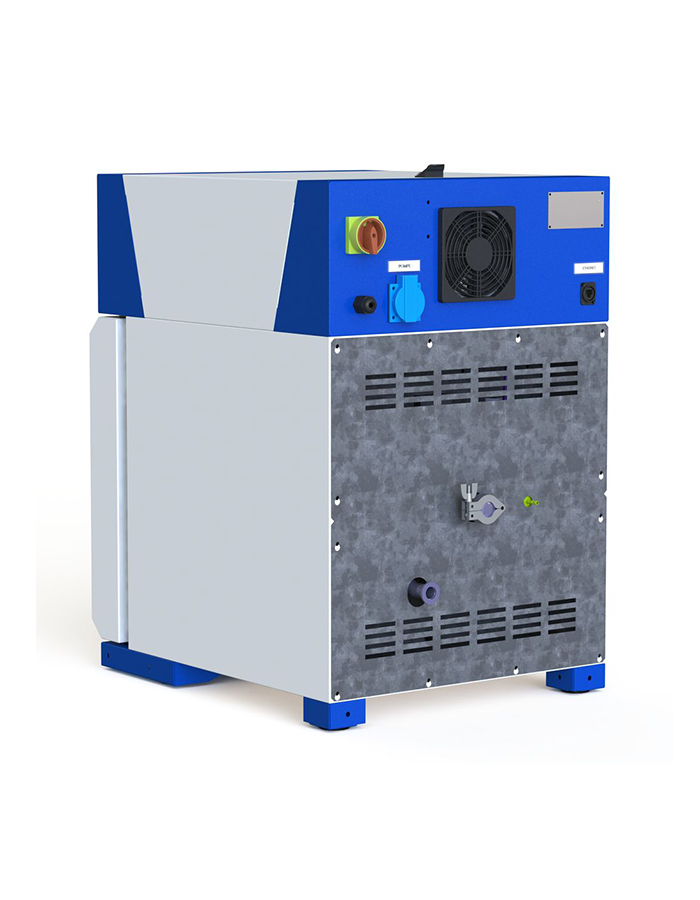

A sturdy construction ensures long-term performance. The door has a thick safety glass that allows you to see the oven clearly.The inner and outer castings are entirely segregated, preventing heat conduction. The inner and outer casings are isolated using asbestos-free glass wool. The exterior is built of steel and painted with blue and white epoxy.

Thermally conductive tray (optional) is provided for precise control of the specimen temperature.

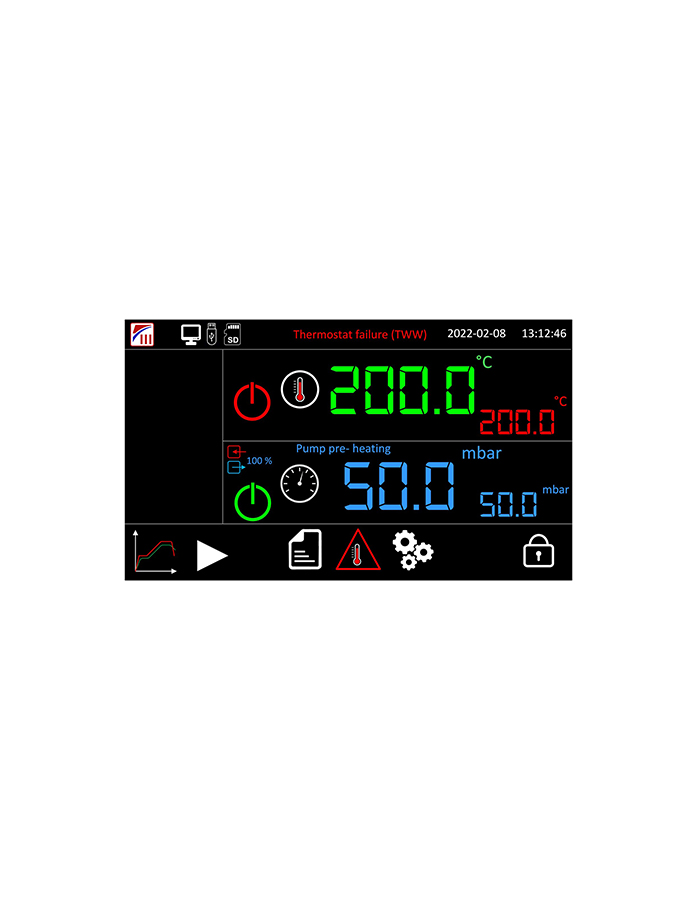

The ovens are controlled by a 7-inch color touchscreen controller. The C6000 seies controller is very intuitive and simple to use. Temperature is automatically controlled and monitored in real time using a thermocouple J probe. There are several vacuum control options available, including the maximum vacuum level of the pump and maintaining a steady pressure. Automatic control of solenoid valves used to adjust the vacuum level. Vacuum levels are monitored in real time. CYCLE PROFILER. A profiler with four 16-step programs allows for the creation of pressure and temperature cycles. A data logger continuously captures the oven’s data (temperature and pressure values). The data is provided as csv files. Note: The oven can be operated through a PC with an RJ45 cable.

Accessories & Optional Items: Ethernet interface, RS485, factory calibration, Homogenity control calibration certificate, DN16KF adaptor, 2 channels data logger, paperless recorders, subframe with casters, low vacuum kit with custom range. Some models can be equipped with ambient air cooling of the tank.

Applications:

  • Moderate drying for sensitive products, Fast drying, Degassing / Degassing of metal, Bleeding, Heating of metal parts for surface treatment
  • The vacuum avoids oxidation by air, Polymerization vacuum -> without oxidation, Degassing silicone parts for manufacturers of connectors, Sensor of high pressure that must be filled with special oil to protect the sensing element: remove the air from the cavity to fill with oil (vacuum),
  • Test / Calibration of barometers, Degassing gel candles to eliminate air bubbles, Dehydration of powder solvend soaked

Industry: Electronics, metallurgy, mechanical, Pharmaceutical, Semiconductor, Biotechnology, Aerospace, Space, Defence, Electrical

Spacial applications:

Space: When a satellite is launched into space, the components begin to degas. To minimize problems such as pollution in precision optics in the case of an observation satellite, XFP vacuum ovens can be employed to force degassing before launch.

Formula One engine parts: Degassing items of high precision items used in Formula One engine prior to treating the surfaces.

6 volumes available: 20, 51, 110, 220, 316 and 512 litres

Models: XFP020, XFP050, XFP120, XFP240, XFP320, XFP512
