Standard maximum temperature: 200°C

Vacuum measuring range: Vacuum level depending on your vacuum pump. Display on the controller up to 1 mbar (absolute pressure)

Our Vacuum ovens XFE are suitable for drying* of sensitive products, thermal treatments of oxidizable materials, quick drying of powders and granulate… in pharmaceutical, cosmetics, plastics, electronics, chemical, agrifood… laboratories or industries.

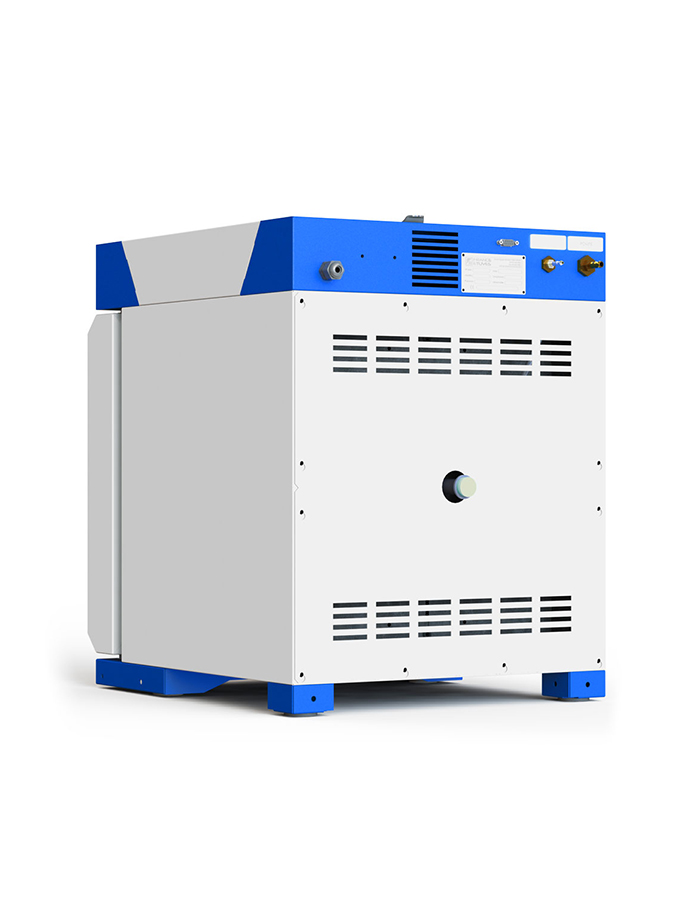

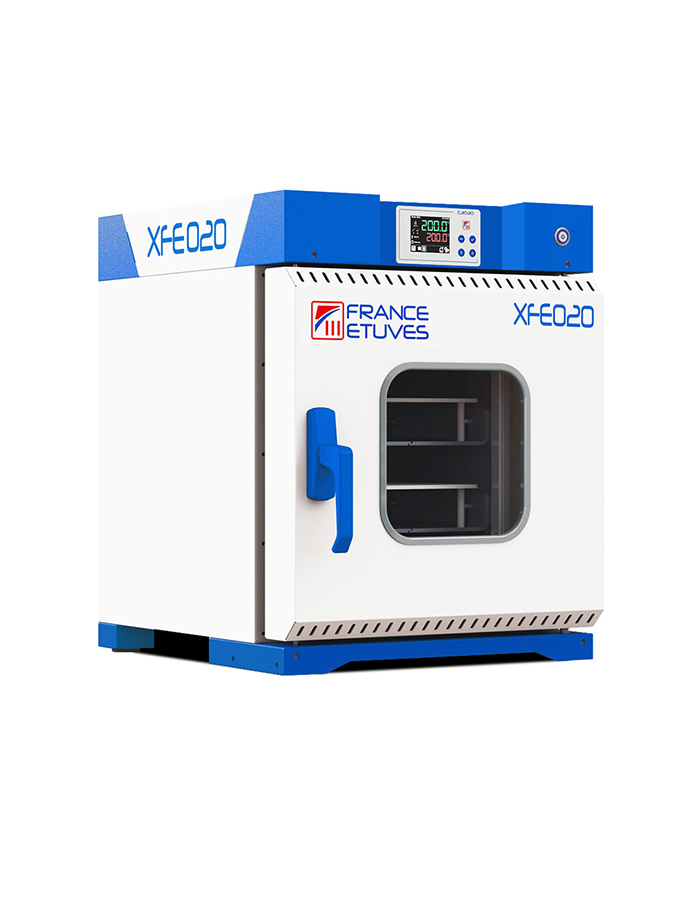

A sturdy construction ensures long-term performance. The door has a thick safety glass that allows you to see the oven clearly.The inner and outer castings are entirely segregated, preventing heat conduction. The inner and outer casings are isolated using asbestos-free glass wool.  The exterior is built of steel and painted with blue and white epoxy.

Thermally conductive tray (optional) is provided for precise control of the specimen temperature.

An inhouse developed controller C3030 ensuers precise control of the set  temperature and vacuum levels. Crystal clear colour display provides easy viewing of the test parameters.

Accessories & Optional Items: Ethernet interface, RS485, factory calibration, Homogenity control calibration certificate, DN16KF adaptor, 2 channels data logger, paperless recorders, low vacuum kit with custom range

Applications:

• Moderate drying for sensitive products, Fast drying, Degassing / Degassing of metal, Bleeding, Heating of metal parts for surface treatment
• The vacuum avoids oxidation by air, Polymerization vacuum -> without oxidation, Degassing silicone parts for manufacturers of connectors, Sensor of high pressure that must be filled with special oil to protect the sensing element: remove the air from the cavity to fill with oil (vacuum),
• Test / Calibration of barometers, Degassing gel candles to eliminate air bubbles, Dehydration of powder solvend soaked

Industry: Electronics, metallurgy, mechanical, Pharmaceutical, Semiconductor, Biotechnology, Aerospace, Space, Defence, Electrical

Space: When a satellite is launched into space, the components begin to degas. To minimize problems such as pollution in precision optics in the case of an observation satellite, XFE vacuum ovens can be employed to force degassing before launch.

Formula One engine parts: Degassing items of high precision items used in Formula One engine prior to treating the surfaces.

3 volumes available: 20, 50 and 120 liters
