Standard temperature: 200 ° C

Maximum temperature: 300°C(Optional)

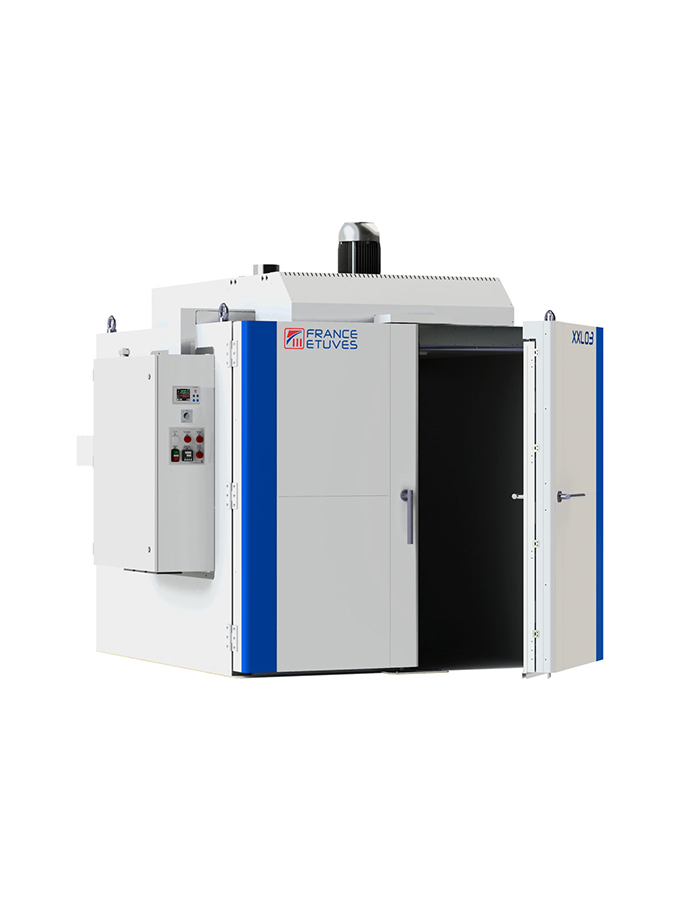

The XXL large industrial ovens have been designed for all application of curing, polymerization, coating, preheating, heating, drying, vitrification, stabilization on all types of products: prepregs, free-solvent paints and glues, molds, tools, glasses, compact powders, resins, metallic parts, electronic parts, elastomer… in any type of industrial environments.

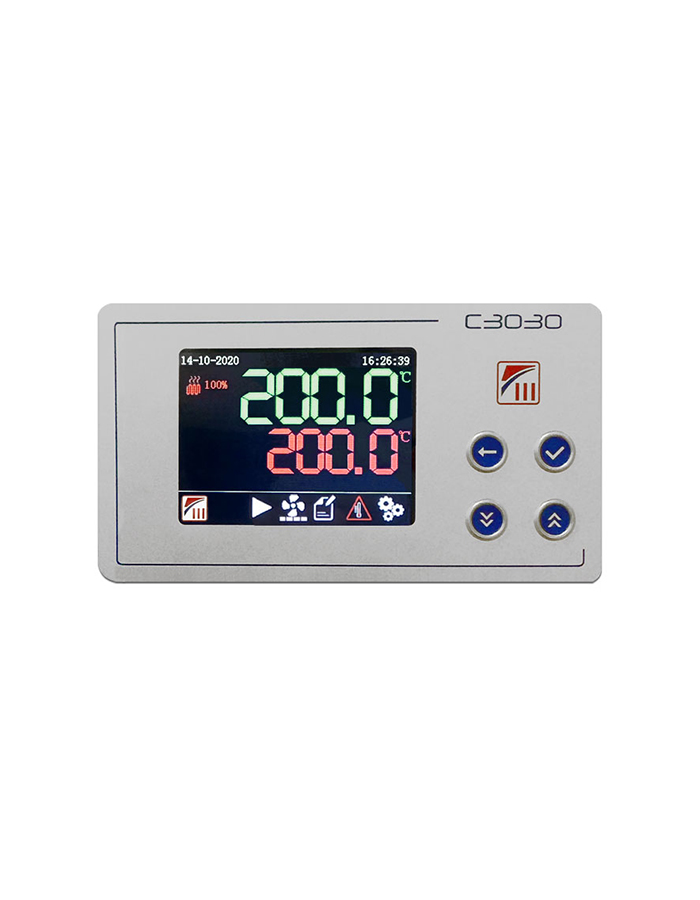

XXL ovens use the FRANCE ETUVES C3030 controller, which allows you to create a temperature program with up to 8 segments (4 programmable temperature ramps (° C / min) and 4 temperature maintenance levels (max 9999min).

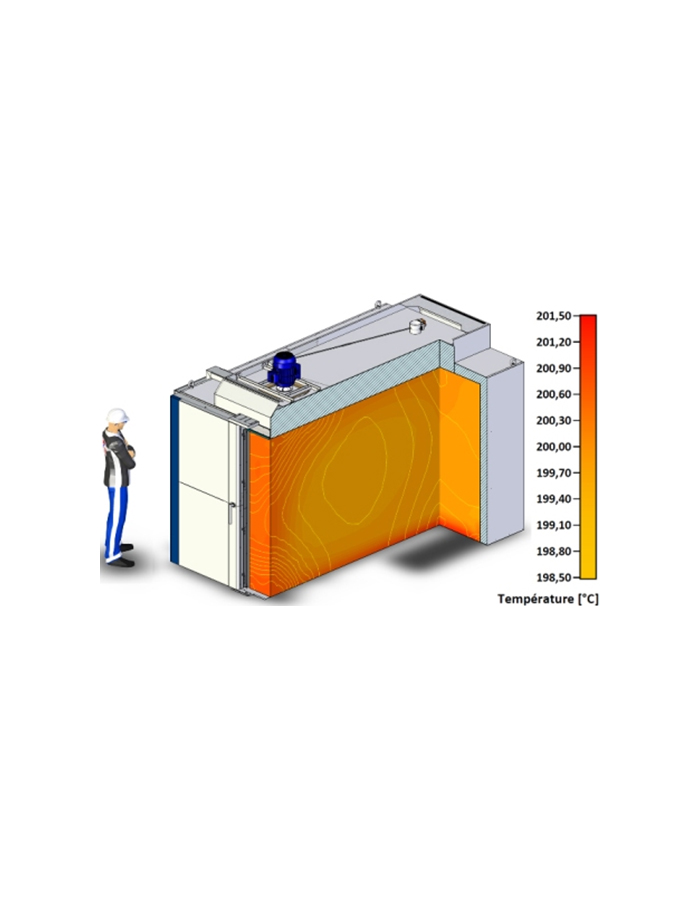

The fan is located on the top of the oven. Working volume’s air is sucked by the impeller, is reheated by the heating system then is blown into the working volume from the back part on the whole width. Thanks to their exclusive ventilation system and to their efficient heating system, our XXL ovens guarantee excellent temperature uniformity.

An electronic thermostat (class 3.1 protection) safeguards the items by stopping heating if the temperature raises beyond the predetermined alert threshold. The package also includes a mechanical thermostat with a reset button (class 1 protection). If the temperature exceeds the predetermined point or the ventilation fan fails, the heating is turned off and visual alarms are triggered.

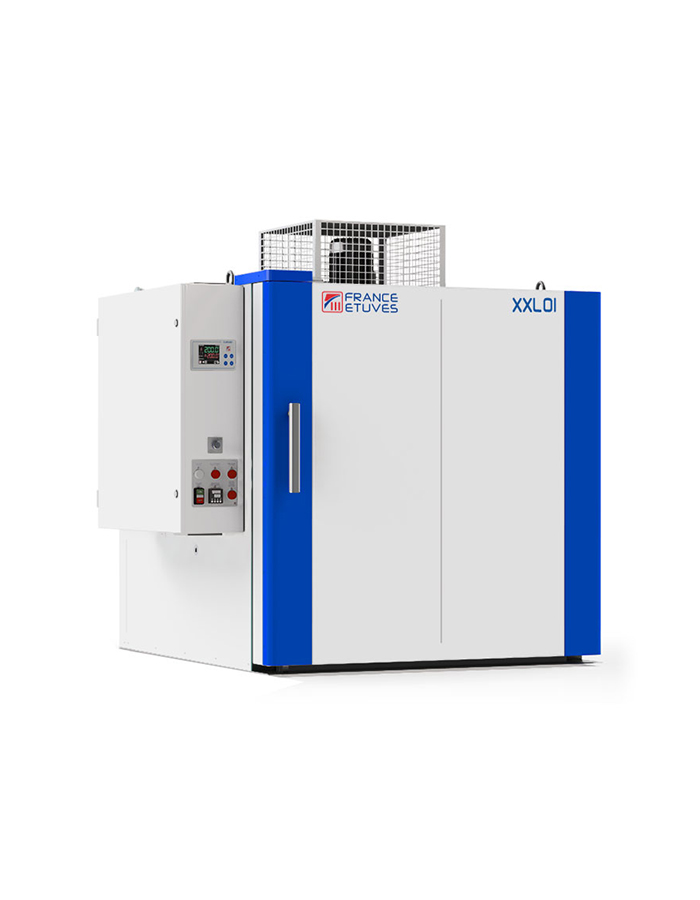

Models: XXL01, XXL01.5, XXL01.8, XXL02.7, XXL03, XXL04.5, XXL08, XXL12, XXL15
