Maximum temperature: 100°C

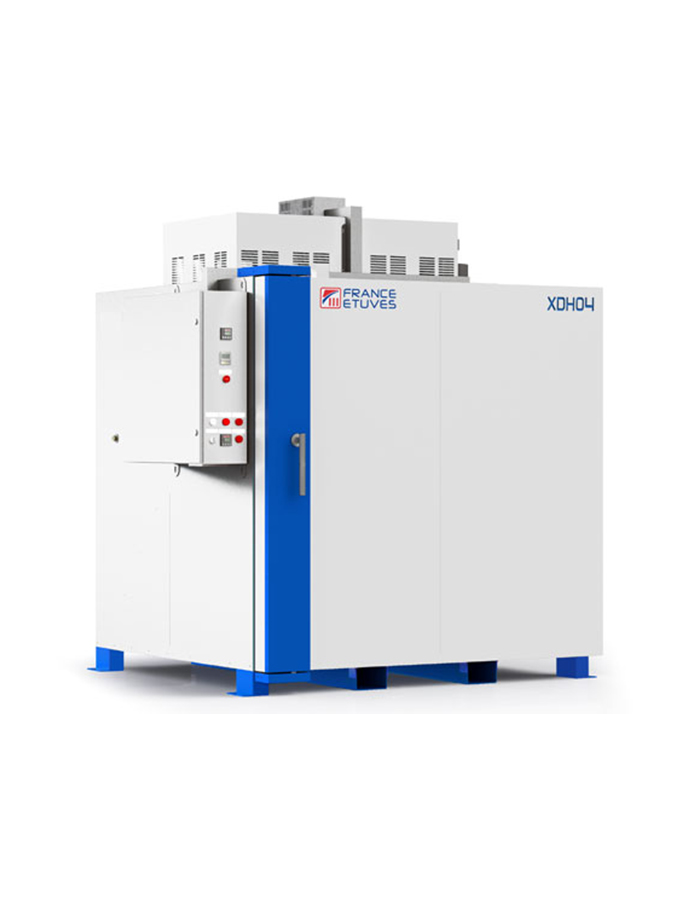

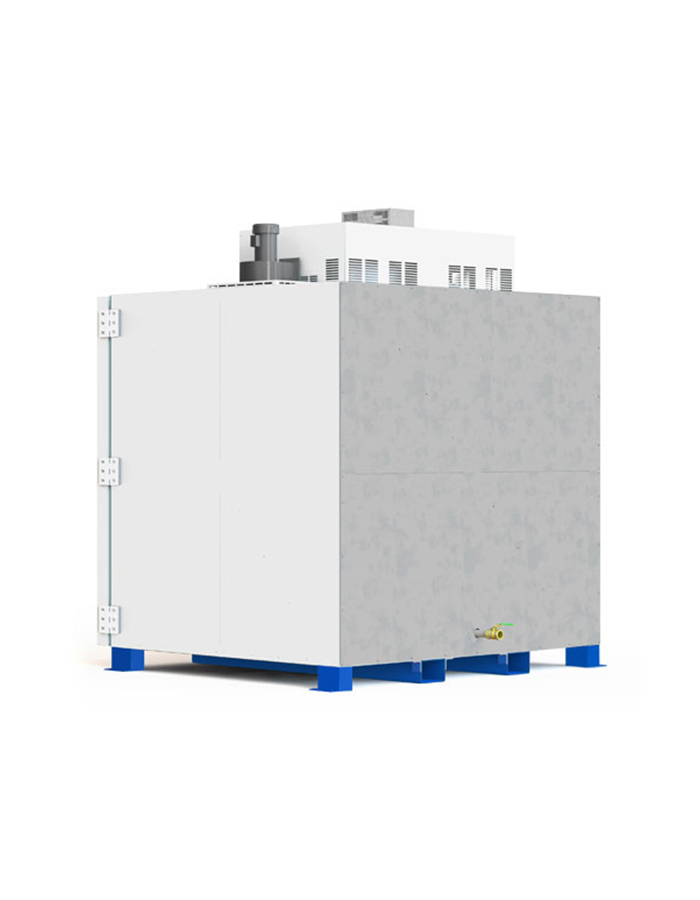

The range of XDH drums heaters has been designed for heating raw materials stored in totes or in IBCs. 8 sizes available depending on the quantity of drums to be incorporated: 1, 2, 4, 8, 12, 16, 24 and 32 drums.

The outer sheets are made of electro galvanized steel coated with a white and blue epoxy paint.

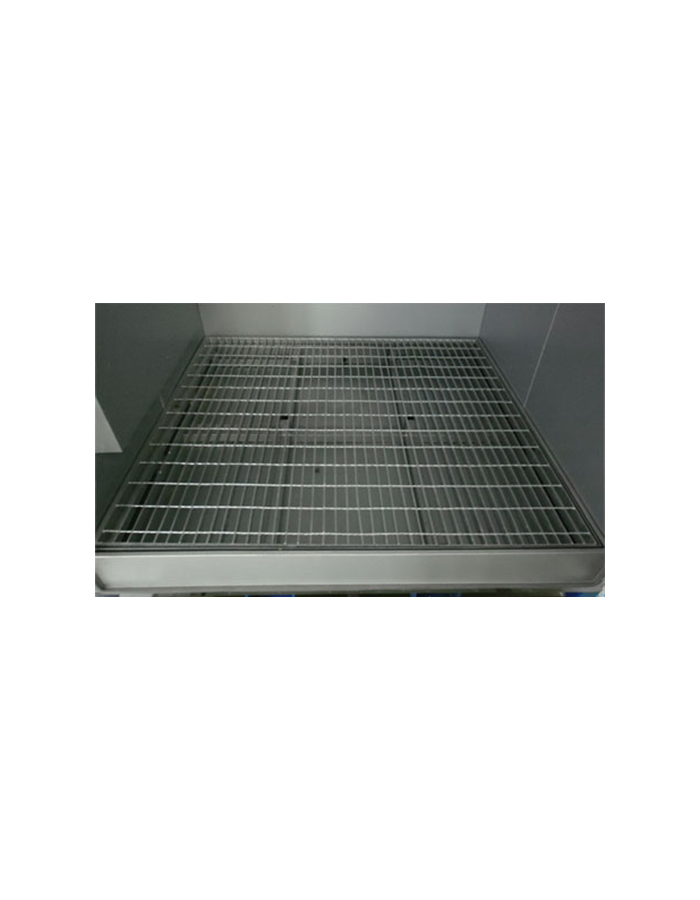

The interior casing is made of galvanized steel. The integrated reinforcement and the structural elements ensure the robustness of the oven.

The thermal insulation optimized by 80 mm of rock wool without asbestos, and no contact between inner and outer casing allow:

• Low heat dissipation,
• Reduce the temperature rise time
• Low surface temperatures
• Excellent thermal stability
• Reduced energy costs.

Models that accommodate 1, 2, 4, 8 are single door based. Larger ovens incorporate double leaf door with internal anti-locking safety handle.

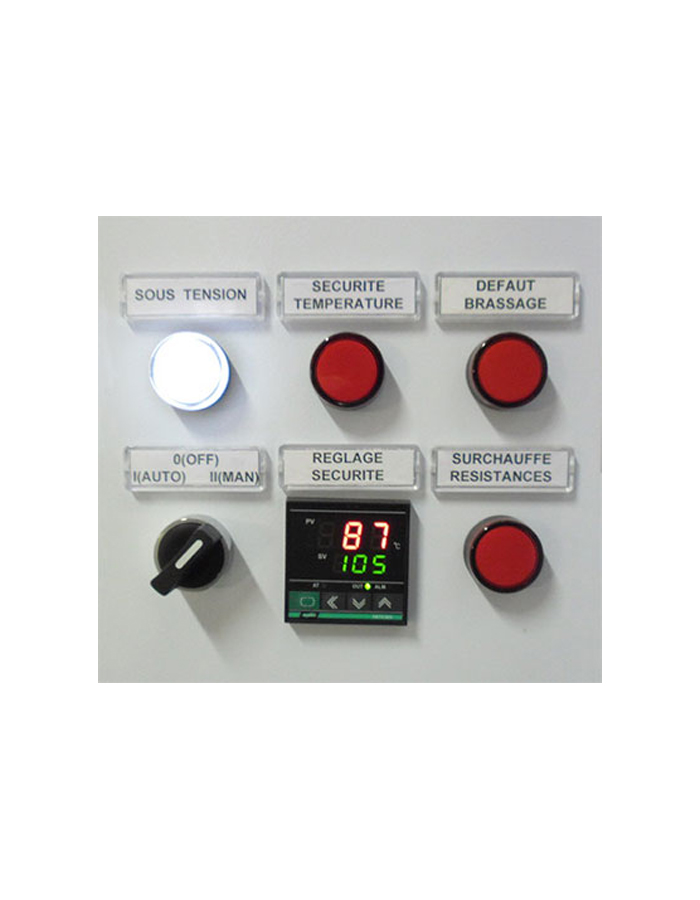

The control panel is located on the electrical box on the left side of the oven. A Ø 20 mm entry port with silicone cork, located on the left side of the oven, allows different cables and probes to pass through.

Models: XDH01, XDH02, XDH04, XDH08, XDH16
