Standard temperature: 200 ° C

Maximum temperature: 300°C(Optional)

The XL ovens are appropriate for Polymerization of paint films, of solvent-free glue, of pre-impregnated (Prepeg), Reheating of flavors, drums heating, curing of mould, of tools, of tubes, drying of primers on glass, of compact powder, filament wiring tubes in rotation, of aluminum parts, Pre-heating of metallic parts, Burn-in of electronic components, warm-up of stainless steel parts, stabilization of elastomer products.

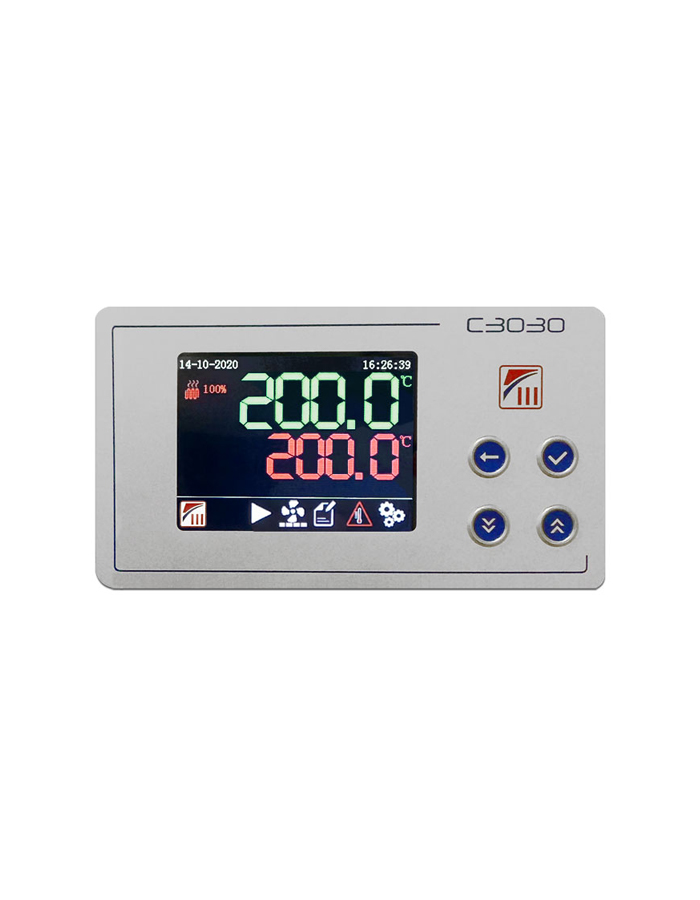

XL ovens use the FRANCE ETUVES C3030 controller, which allows you to create a temperature program with up to 8 segments (4 programmable temperature ramps (° C / min) and 4 temperature maintenance levels (max 9999min).

An electronic thermostat (class 3.1 protection) safeguards the items by stopping heating if the temperature raises beyond the predetermined alert threshold. The package also includes a mechanical thermostat with a reset button (class 1 protection). If the temperature exceeds the predetermined point or the ventilation fan fails, the heating is turned off and visual alarms are triggered.

Special applications:

Aerospace: Polymerization of helicopter blades

7 volumes available : 112, 343, 490, 686, 980, 1400 & 1800 litres

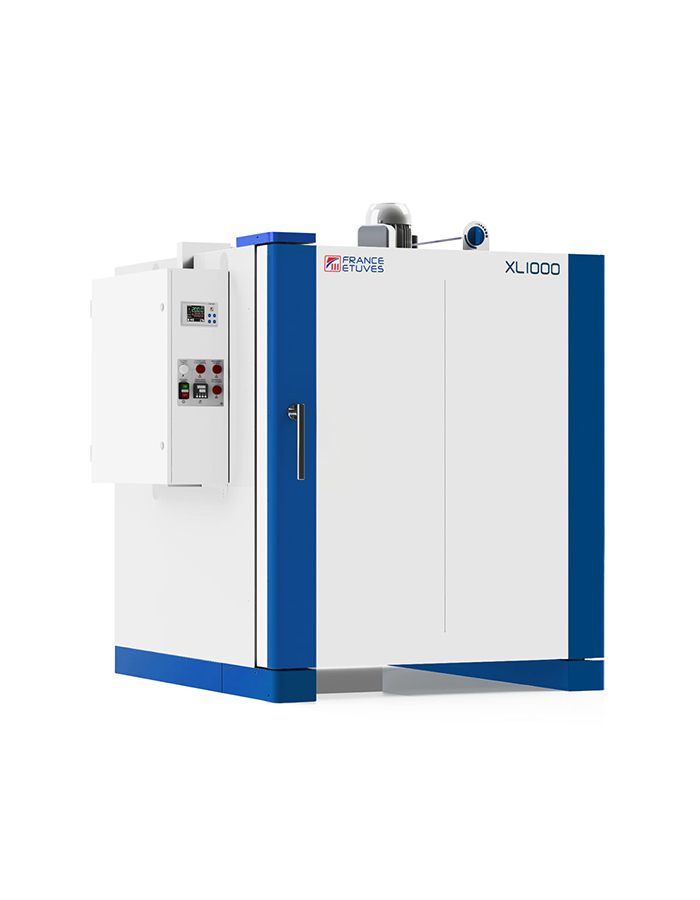

Models: XL0112, XL0343, XL0490, XL0686, XL0980, XL1000, XL1400, XL1800
