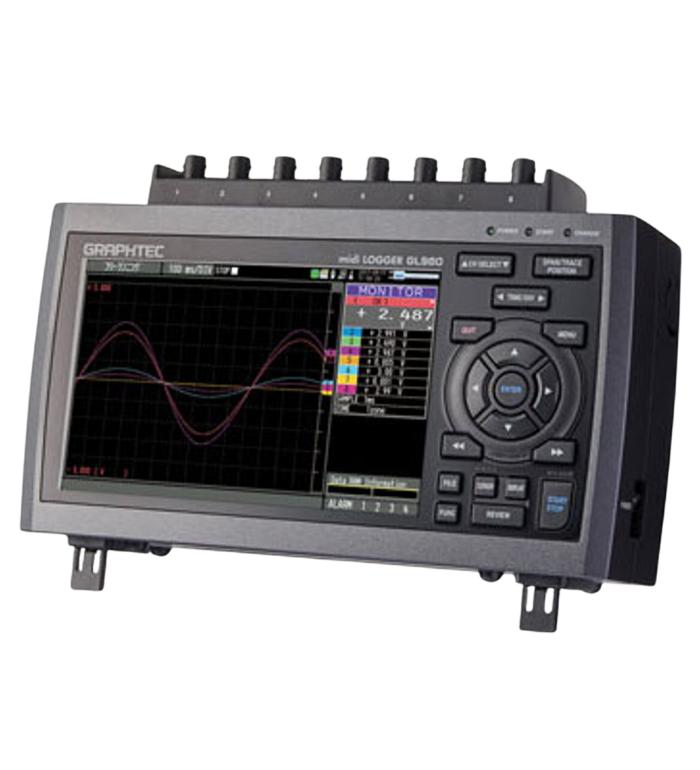

GL 980 8-Channel High Speed High Voltage Data Logger

GL 980 is a high Speed 1 MS/s Data logger with Voltage and Temperature Measurements.
Features 8 isolated analog input channels, with 4 discrete inputs, and 4 discrete outputs with extremely flexible triggering conditions.

Features:

8 Analog Input Channels
Measurement possibilities: Measurement: Temperature, Voltage, Flowrate, airflow, displacement, strain, humidity, torque, rotation/rpm
Voltage range: ±20 mV to ±500 V over 14 ranges
Sampling rate: 1 M Samples/s to 1 Sample/min (1 μs to 1 min)
Display: Large Easy-to-read 7-inch LCD
4 discrete input channels
4 discrete alarm outputs
Internal storage 4GB, removable external storage up to 32GB
Power source: (2) AA Batteries, AC, DC
Communication Interface: USB or LAN/ Ethernet
Power Source: (2) AA Batteries, AC, DC
Software: Windows based

Download the Brochure

Description

Accessories List

ACADP-20 AC ADAPTER with AC power cable (CE) for GL series

AC adapter that is supplied as a standard accessory.
Input supply: 100 to 240 VAC, 50/60 Hz

B-513 Logic/Alarm Cable

The Input/output cable for GL data logger enables 4 channels of
logic/pulse input, external trigger input, and alarm signal output.

Typical applications: RPM measurements, counts

B-530 Humidity sensor (3m)

Allowable temperature range: -25 to +80°C
Allowable humidity range: 0 to 100% RH
Relative humidity measurement accuracy: ±3% RH (5 to 98% RH at 25°C)
Method: Capacitance method
Response time: 15 sec. (90% response when membrane filter is installed)
Cable length 3 m
Sensor power source: DC +5 to +16 V
Power consumption approx. 4 mA

B-569 Battery pack

- Capacity: 7.2V/2900mAh
- Battery type: Lithium secondary battery

When LCD is ON

- Battery pack x 1 (brightness MAX): approx. 3 hours
- Battery pack x 2 (brightness MIN): approx. 6 hours

When LCD is OFF

Battery pack x 1: approx. 5 hours
Battery pack x 2: approx. 10 hours
Charging method Mount in the main unit

Time required for charging
- Battery pack x 1: approx. 5 hours
- Battery pack x 2: approx. 10 hours
The power supply will be switched automatically to the battery in the event of a power failure.
The AC adapter is the primary power source.
Operation environment Running on battery: 0 to 40°C,
Battery being charged: 15 to 35°C

B-514 DC power cable (2m)

GL 240 can be powered on using DC power: 8.5 to 26.4 VDC range.
DC drive cable is an optional item and is used when operating a logger with DC power.
