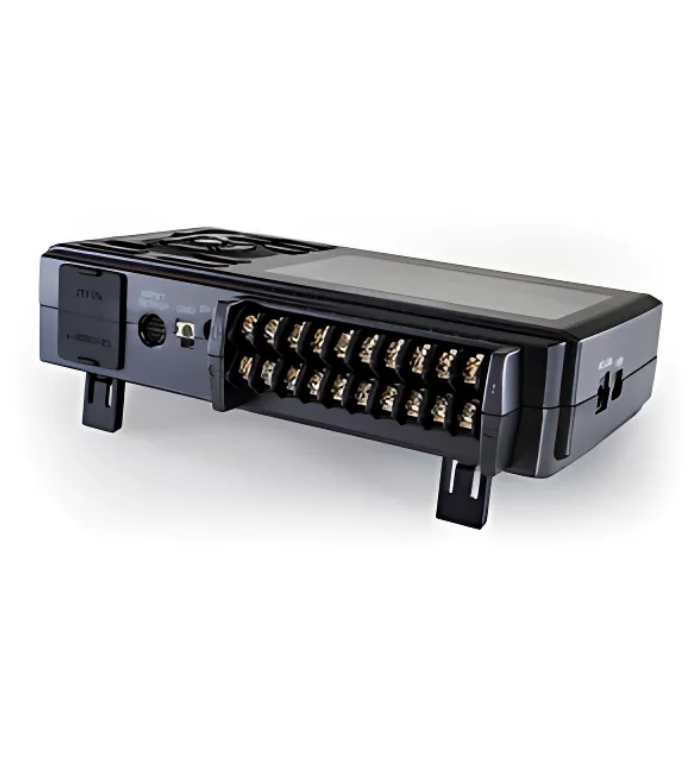

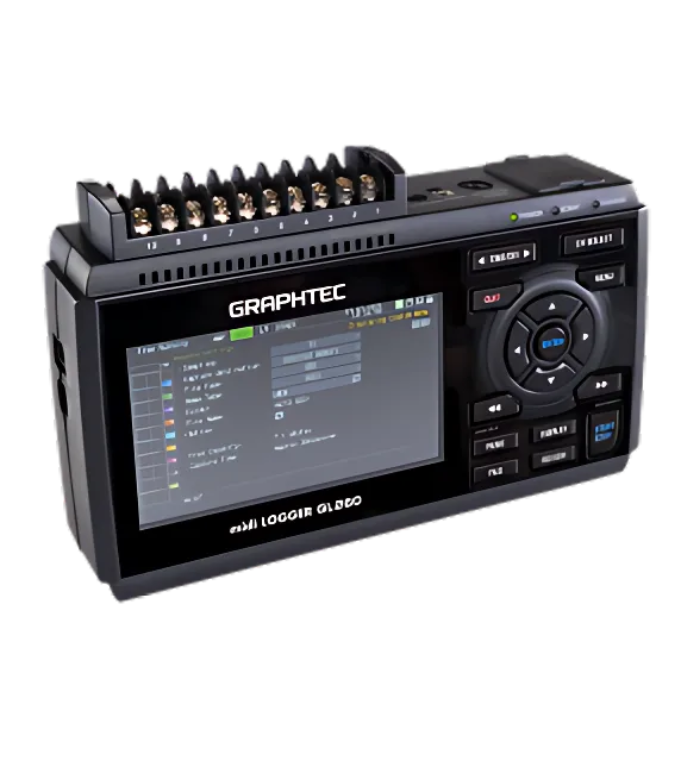

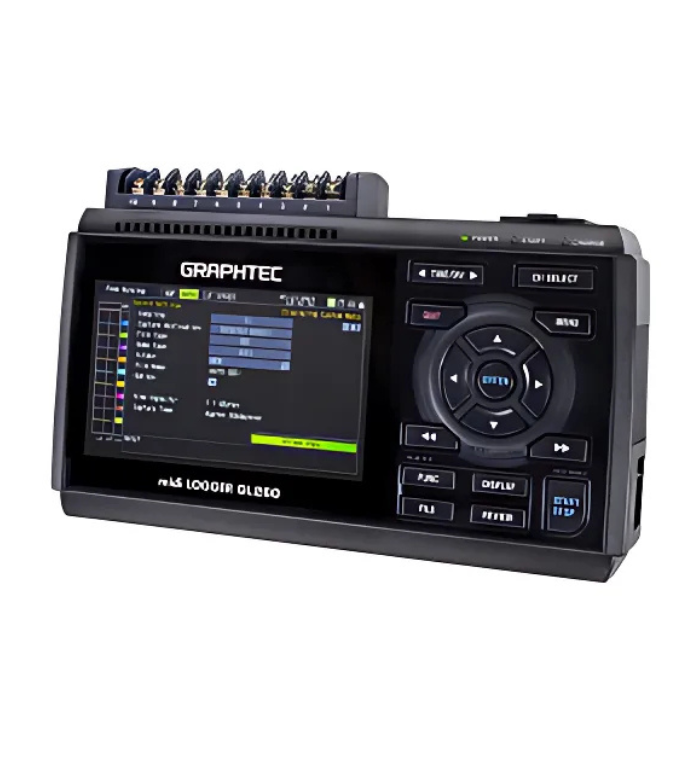

GL260 Compact Standalone Multi-Channel

GL-260 is a handheld, portable datalogger used for measuring, recording signals such as Temperature, Humidity, Acceleration, Carbon Dioxide, Illuminance (UV), Voltage and Current, logic, and pulse signals.

Features:

10 Analog Input Channels,
Voltage range: ±20 mV to ±100 V over 12 ranges
Sampling rate: 10 ms
Display: 4.3″ TFT Colour LCD
4 discrete input channels
4 discrete alarm outputs
Internal storage 4GB, removable external storage up to 32GB
Data storage on cloud server (optional)
Inter channel operational function (new statistical calculations)
Power source: AC, DC, Battery
Communication Interface: USB
Software: Windows based
Operating environment: 0 – 45℃, 5 – 85％ RH

Download the Brochure

Description

Accessories List

ACADP-20 AC ADAPTER with AC power cable (CE) for GL series

AC adapter that is supplied as a standard accessory.
Input supply: 100 to 240 VAC, 50/60 Hz

B-513 Logic/Alarm Cable

The Input/output cable for GL data logger enables 4 channels of
logic/pulse input, external trigger input, and alarm signal output.

Typical applications: RPM measurements, counts

B-514 DC power cable (2m)

GL 240 can be powered on using DC power: 8.5 to 26.4 VDC range.
DC drive cable is an optional item and is used when operating a logger with DC power.

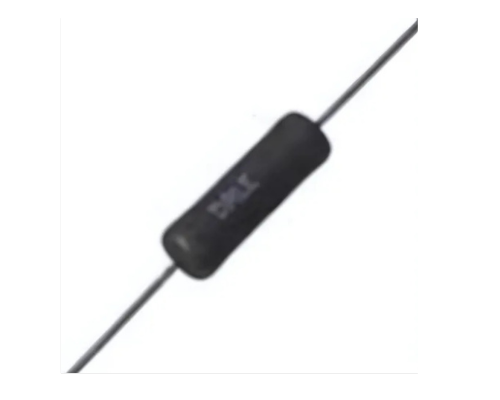

R250 4-20mA Current Loop Shunt Resistor

The shunt resister of 250 ohms, 1 watt capacity is used for measuring DC current of 4 to 20ma range. The output voltage across the terminals is 1 to 5V based on the DC current range.

B-530 Humidity sensor (3m)

Allowable temperature range: -25 to +80°C
Allowable humidity range: 0 to 100% RH
Relative humidity measurement accuracy: ±3% RH (5 to 98% RH at 25°C)
Method: Capacitance method
Response time: 15 sec. (90% response when membrane filter is installed)
Cable length 3 m
Sensor power source: DC +5 to +16 V
Power consumption approx. 4 mA

B-569 Battery pack

Capacity: 7.2V/2900mAh
Battery type: Lithium secondary battery

When LCD is ON

- Battery pack x 1 (brightness MAX): approx. 3 hours
- Battery pack x 2 (brightness MIN): approx. 6 hours

When LCD is OFF

Battery pack x 1: approx. 5 hours
Battery pack x 2: approx. 10 hours
Charging method Mount in the main unit

Time required for charging
- Battery pack x 1: approx. 5 hours
- Battery pack x 2: approx. 10 hours
The power supply will be switched automatically to the battery in the event of a power failure.
The AC adapter is the primary power source.
Operation environment Running on battery: 0 to 40°C,
Battery being charged: 15 to 35°C

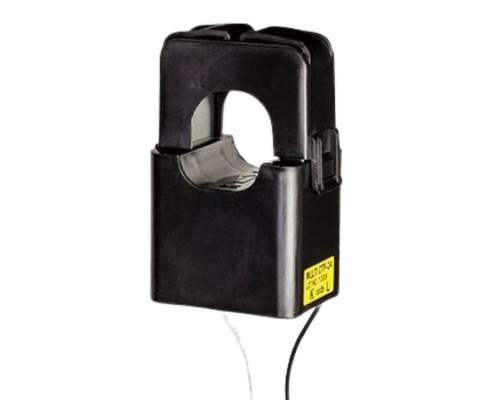

GS-AC100A Current Sensor

Current sensor allows measurement of up to 100 Amps AC current.
The AC current sensor is connected to the logger using a branch adapter.

Features:

Withstand voltage: AC2200V, 1 min. (between external case and output terminals)
Insulation resistance: DC500V, 100MΩ or more (between external case and output terminals)
Window diameter: GS-AC100A: φ16 mm
Operating temperature and humidity -10 to 50°C, 80% RH or less non-condensing
Cable length: Approx. 20 cm

GS-AC200A Current Sensor

Current sensor allows measurement of up to 200 Amps AC current.
The AC current sensor is connected to the logger using a branch adapter.

Features:

Withstand voltage: AC2200V, 1 min. (between external case and output terminals)
Insulation resistance: DC500V, 100MΩ or more (between external case and output terminals)
Window diameter: GS-AC200A: φ24 mm
Operating temperature and humidity -10 to 50°C, 80% RH or less (non-condensing)
Cable length: Approx. 20 cm

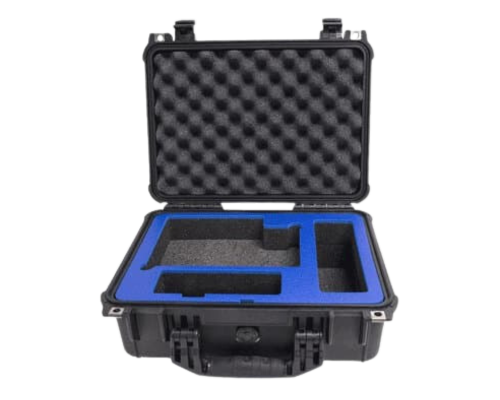

B-536US-240 Carrying Case

Carrying Case. Interior padding and rugged exterior for safe transportation of your GL240 data logger.
