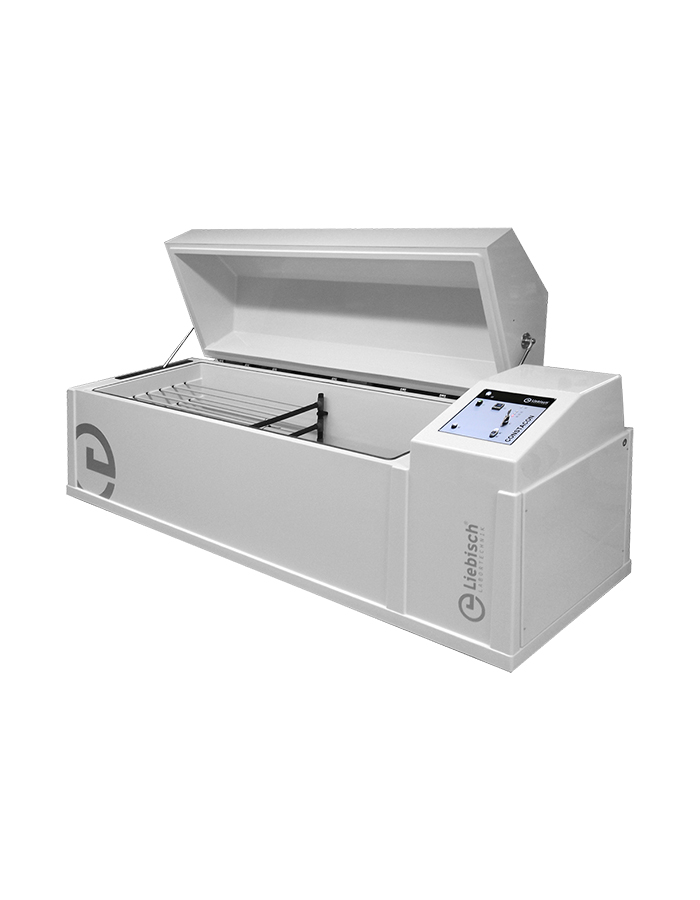

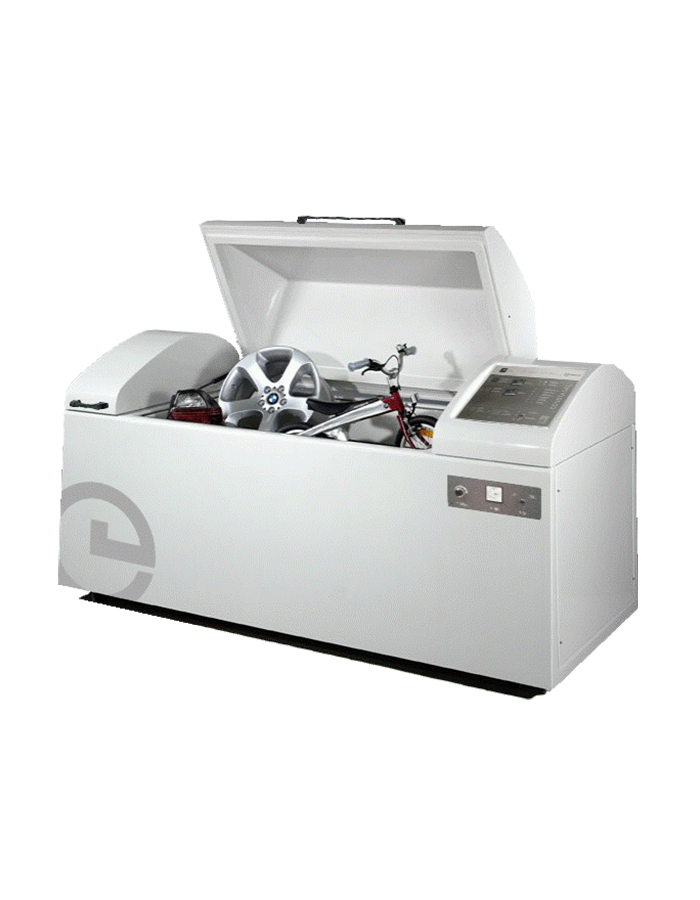

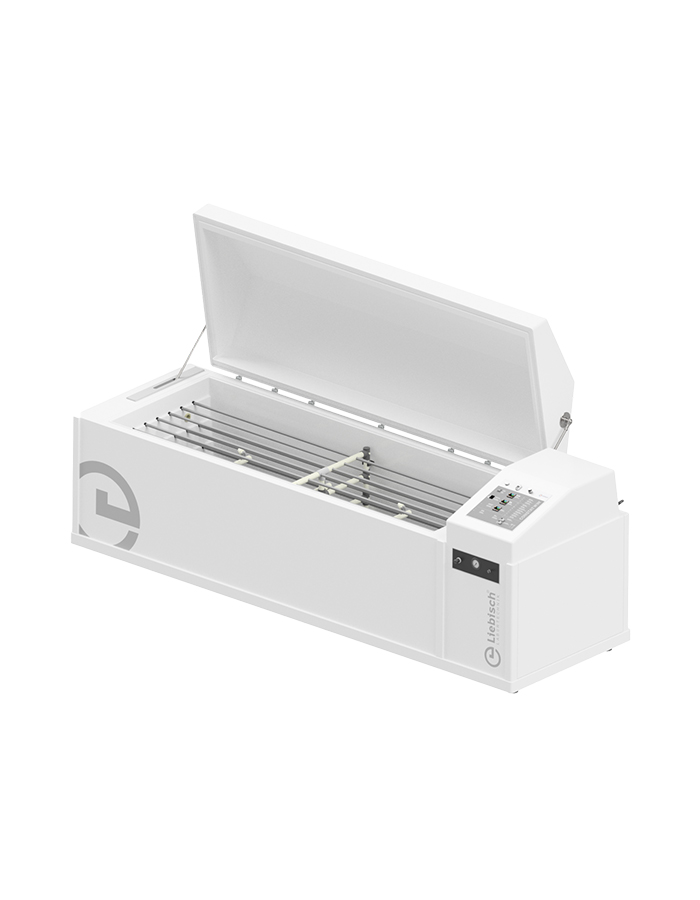

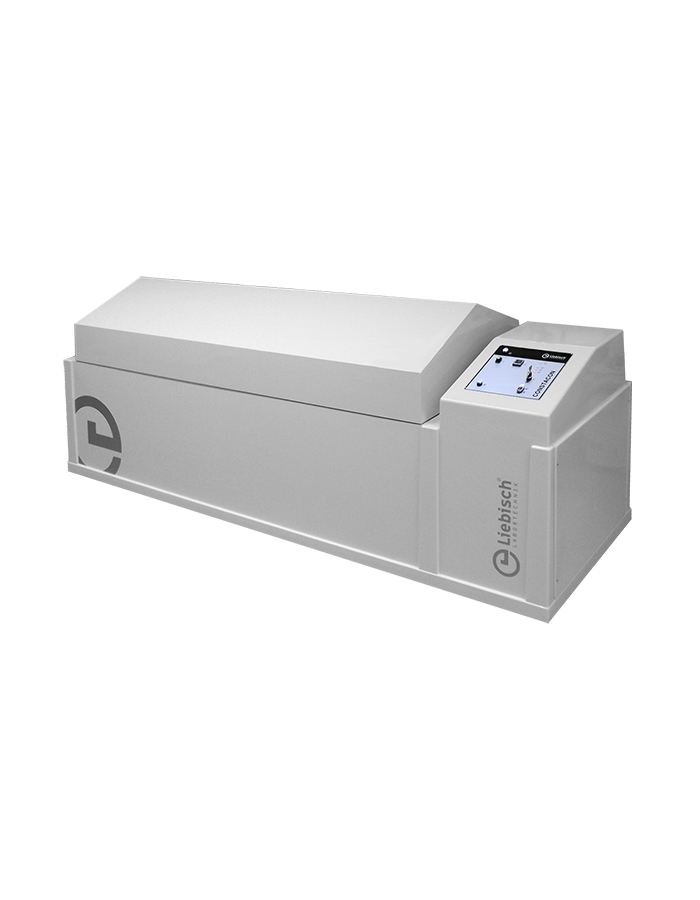

Salt Spray Test chambers (Constasal® TR)

Salt Spray Test chambers (Constasal® TR)

This device series comprises manually operated chest devices of the type M-TR for carrying out salt spray tests.

  • S 400 M-TR / S 1000 M-TR / S 2500 M-T
  • Chest units with 400/1000/2500 liters test chamber volume.
  • For performing the following tests e.g.: DIN EN ISO 9227, ASTM B 117, ASTM B 368, MIL STD 202 F-101D, MIL STD 810E Meth. 509.3 and other tests

This system consists of:

  • indirectly heated test room with electronic temperature control
  • one or more two-component nozzle(s)
  • Stock depot for test solutions
  • Level vessel for the test solution supply (alternatively: dosing pump)
  • Compressed air humidifier system with automatic water supply

With the help of a dual-stist substance nozzle, a NaCl solution is sprayed in the test chamber.

Humidified compressed air – demineralized water is used for this – sucks in the test solution from a level vessel. The fine spray mist is evenly distributed in the chamber.
