RSL-16 Portable Shaker
Custom vibration test systems are just another way that Thermotron can help fit your unique testing need. Whether you need enhanced shock capabilities while maintaining typical sine and random pulses or to perform high shock tests on a small slip table and then a different test on a large slip table with the same electrodynamic shaker,
Thermotron can help. From integrating a shaker with an AGREE chamber to custom colors to meet brand standard, to color coding the chamber for safety (ie. anything with electricity under it is painted a different color), Thermotron can be your one-stop shop for custom vibration testing needs.

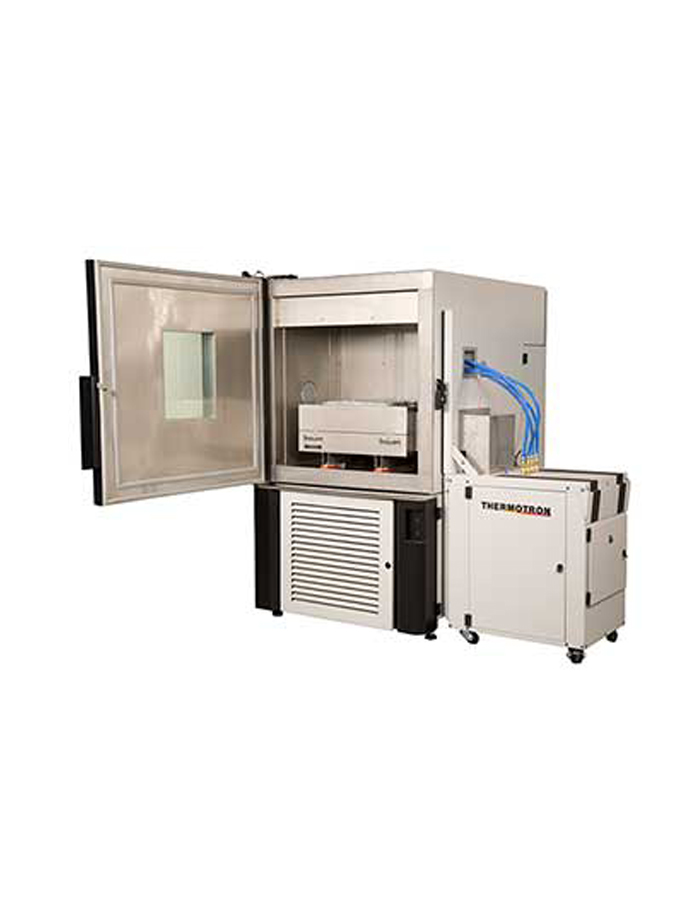

The RSL-16 Portable Shaker performs Temperature, Humidity, and Repetitive Shock Vibration testing for cost effective HALT/HASS in a Thermotron SE-Series Chamber. Each impactor has individual air modulation that smooths frequency response and improves vibration control. The exclusive Windows®-based 8800 programmer controller allows programming, graphing, and reporting of temperature, humidity, and repetitive shock vibration all on one screen. The shaker is designed for full air movement around product(s) attached to the shaker. The shaker can be easily removed for full access to the chamber workspace.
Some features include:
- Temperature, Humidity, and Repetitive Shock Vibration all in one system.
- Cost effective way to introduce HALT/HASS
- Chamber, shaker, and controller can all be purchased from one manufacturer.
- Temperature, Humidity, and Vibration levels displayed on one controller
- Shaker is designed to be in a chamber
- Fits in an SE-600 or larger
Retrofit an existing SE-Series chamber to use with the RSL-16 Portable Shaker
