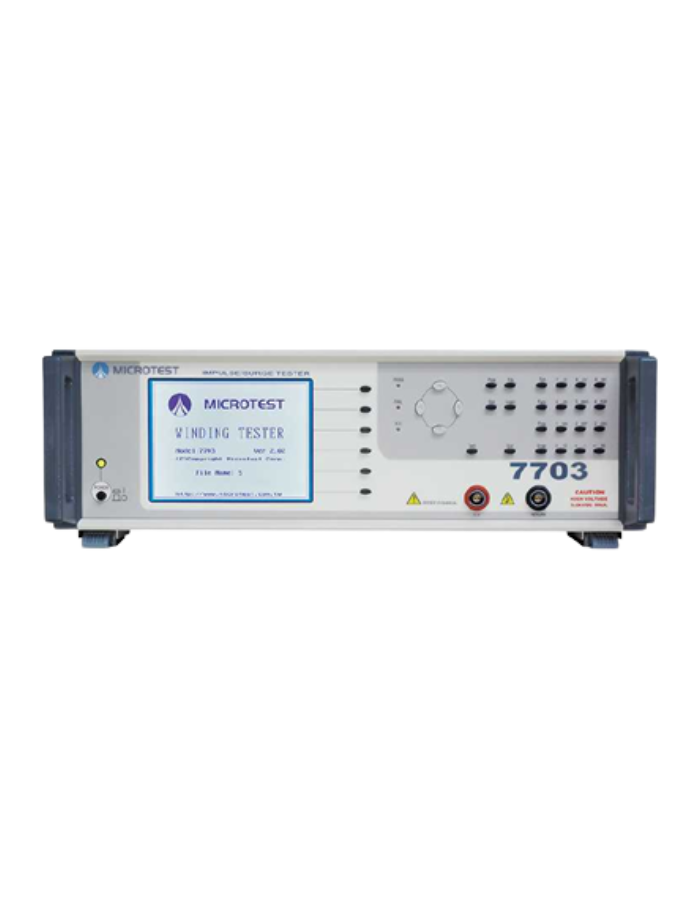

The MICROTEST 7703 is an Impulse Winding Tester capable of delivering pulse voltage outputs ranging from 100V to 5000V. Utilizing damping attenuation waveforms generated by L/C resonance, it effectively analyzes magnetic components for defects, including short circuits between coils or winding wire layers. This model is specifically engineered for Inverter-Transformer products and supports high-frequency harmonic and noise analysis. By amplifying the waveform through high-frequency resonance, it accurately detects insulation defects caused by high-voltage coil slot leakage. The tester offers various comparison modes, including total area comparison, area difference comparison, corona count comparison, jitter count comparison, and waveform comparison.

Features:

• Lowest Inductance (0.5uH)
• HARM analysis / HFLT analysis
• High voltage calibration
• programmable impulse voltage
• Built-in storage 200 sets testing waveform
• Total area comparison
• Differential area comparison
• Wave comparison
• Flat and Corona

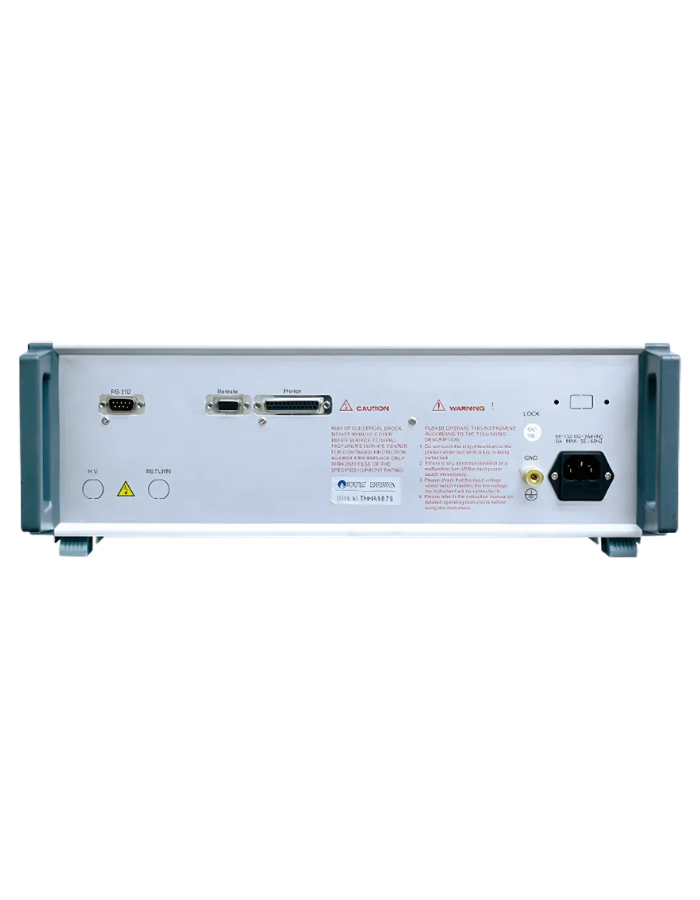

• Support RS-232, remote and printer interfaces
