Impulse tester 7710

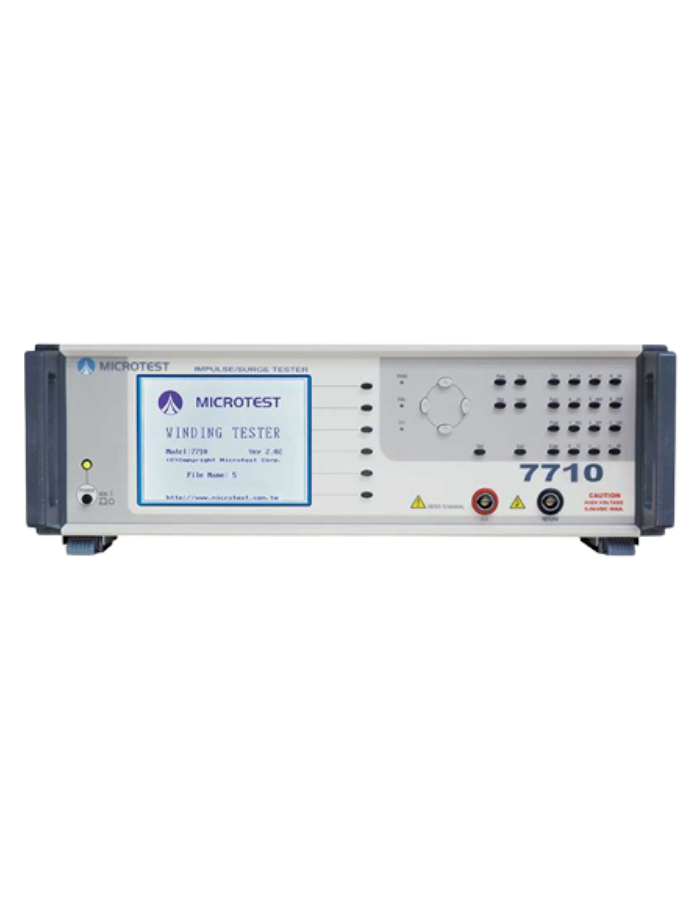

The MICROTEST 7710 is an Impulse Winding Tester that delivers pulse voltage outputs ranging from 200V to 10000V. Utilizing damping attenuation waveforms generated by L/C resonance, it analyzes magnetic components for defects such as short circuits between coils or winding wire layers. The tester provides various comparison modes, including total area, area difference, corona count, jitter count, and waveform comparison. These modes ensure accurate identification and detection of faulty products.
Features:
- Lowest Inductance (100uH)
- High voltage calibration
- programmable impulse voltage
- Built-in storage 200 sets testing waveform
- Total area comparison
- Differential area comparison
- Wave comparison
- Flat and Corona

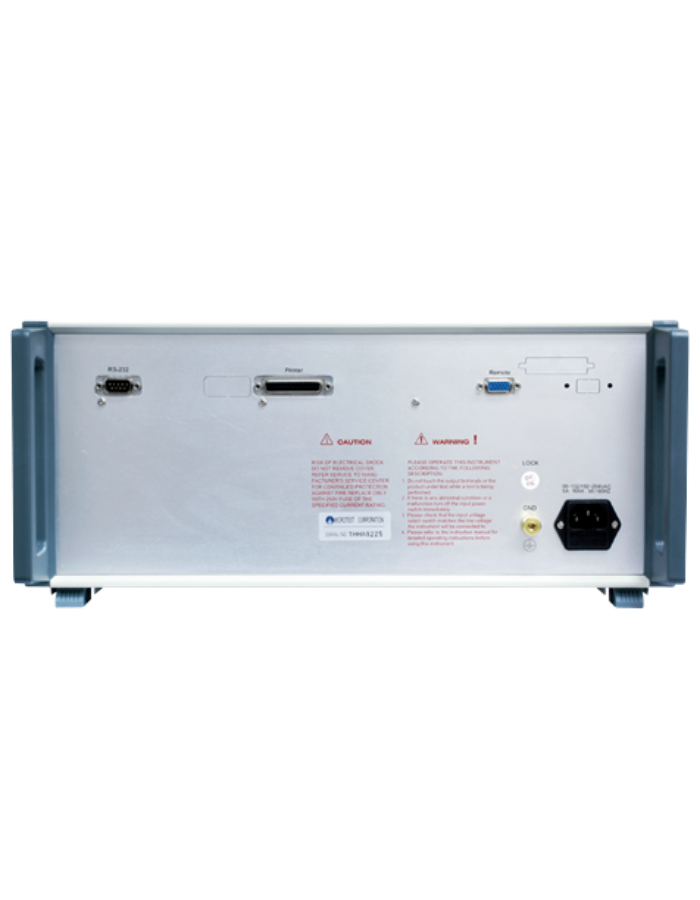

- Support RS-232, remote and printer interfaces
- Key lock function to prevent operators from accidentally touching the keys
