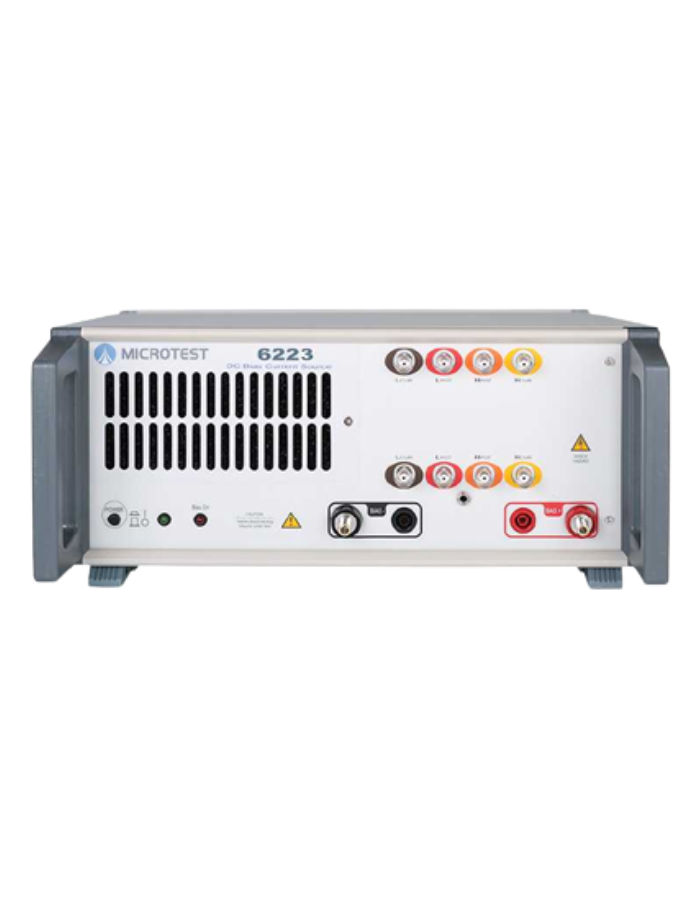

DC Bias Current Source 6223 (20A)
The 6223 DC Bias Current Source is designed for performing magnetic saturation current (Isat) and temperature rise current (Irms) analyses on inductors, providing a single output current of 20A. To conduct these analyses, you can pair the system with either the 6632 Impedance Analyzer or the 6355/6356 LCR Meter.
The 6632 Impedance Analyzer has a frequency range of 100Hz to 10MHz and can handle a maximum output current of 120A using 6 units. The 6355 LCR Meter offers a frequency range of 100Hz to 200kHz and supports a maximum output current of 120A with 6 units. Similarly, the 6356 LCR Meter features a frequency range of 100Hz to 500kHz and can manage a maximum output current of 120A using 6 units.
Features:
- Up to 10MHz
- Each individual unit can output DC Bias Current 20A (Max.120A)
- Control by the LCR Meter or Impedance Analyzer
