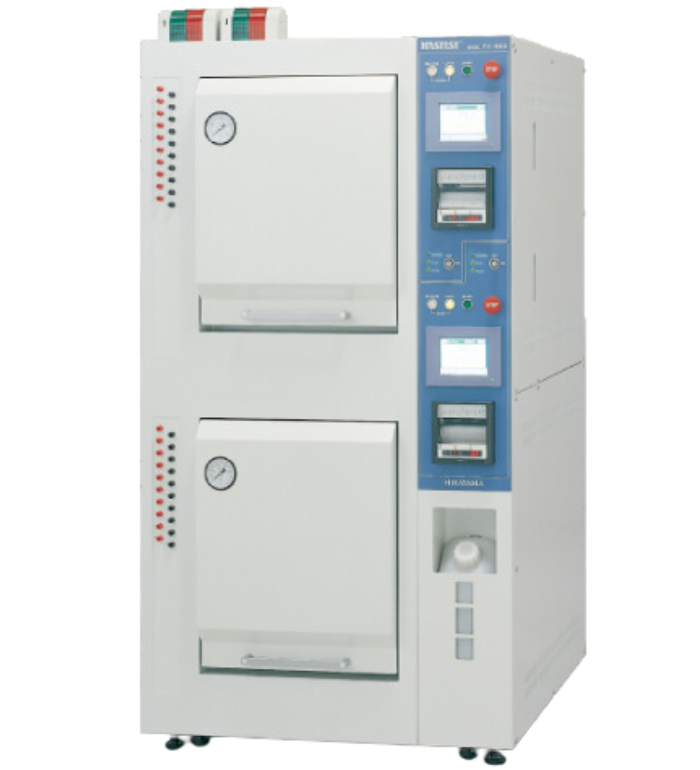

PC-304R8 & PC-304 R8D- Unsaturated & Saturated HAST Chamber
Used For:
- Moisture resistance evaluation of new materials, and comparative test for development.
- Preservation test of electronic components, etc., and identification of lot defects.
- Pressure cooker tests / HAST are developed to accelerate the testing time of Temperature-Humidity-Bias (THB) testing which has typical conditions of 85 ⁰C and 85 % RH and usually takes 1000 hours of testing.
- Unsaturated HAST Testing
Download the Brochure
Share on facebook
Share on twitter
Share on whatsapp
Share on email
- High Performance Dual Chamber System
- Equipped with high-precision PID control system

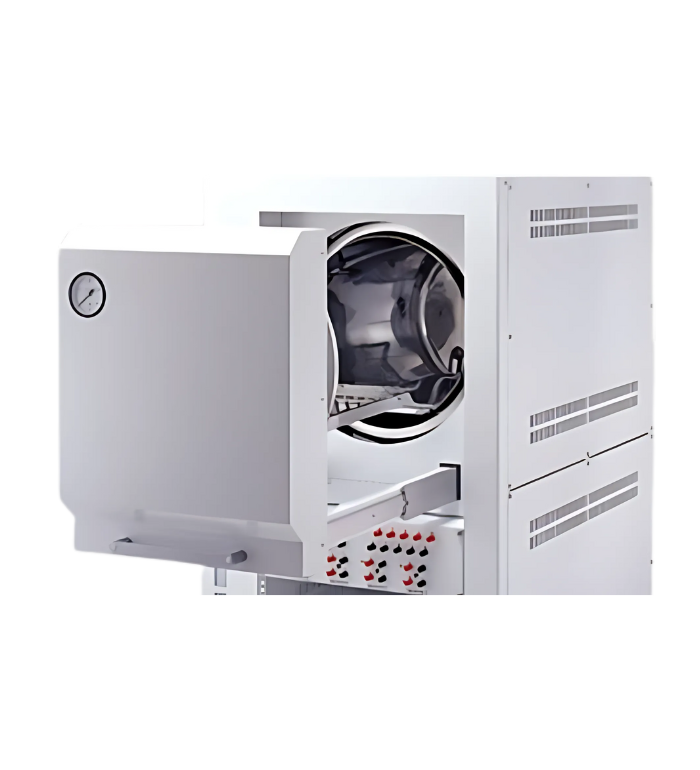

- Chamber size: Φ300xD373 mm
- Wide test condition setting range
- 105.0～151.4℃ (at 100%RH)
- 110.0～157.4℃ (at 85%RH)
- 118.0～162.5℃ (at 65%RH)
- Temperature control accuracy: ±0.5°C
- Working pressure range: 0.019～0.393MPa
- Working time range: 500 hours, continuously

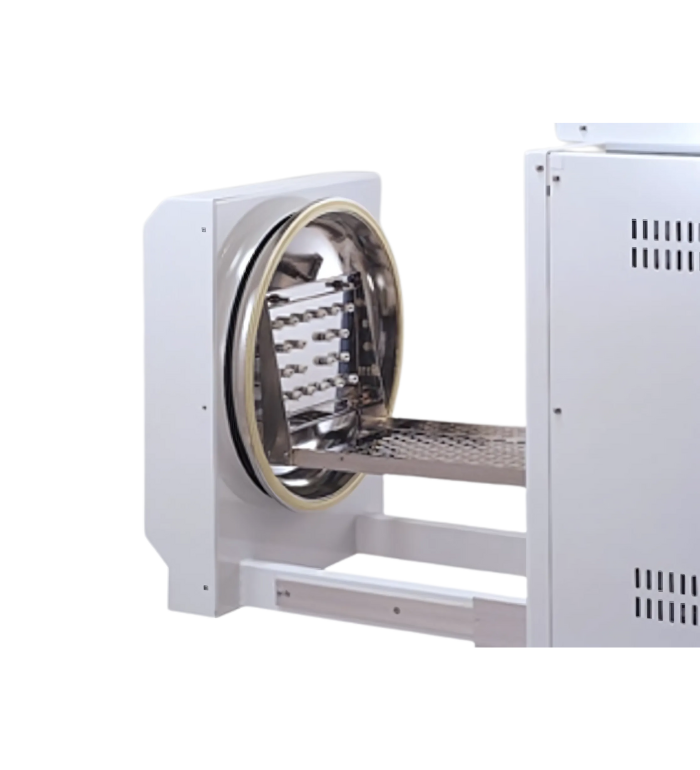

- 20 units of bias terminals
- Automatic water supply system
- Door safety interlock and burn out prevention cover using resin
- Pressure safety valve
- Over-pressure prevention
- Over-heat prevention
- Low water cut off device
- Feed-water failure detector
- Leakage breaker (with O.C.)
- Breaker for heater
- Fuse
- Safety door system
- (Door lock during operation)

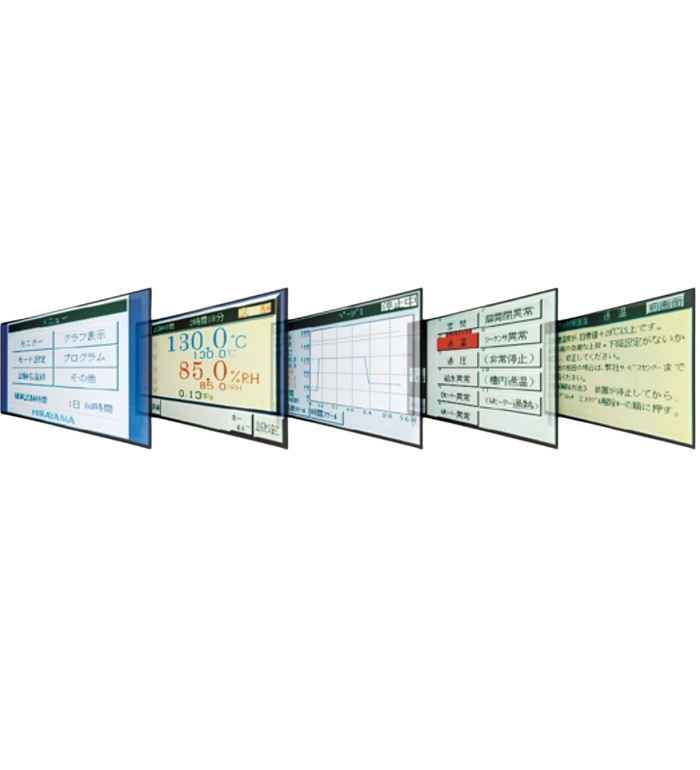

- Self-diagnosis function
- Negative pressure prevention device
