Pressure for automotive applications for valves

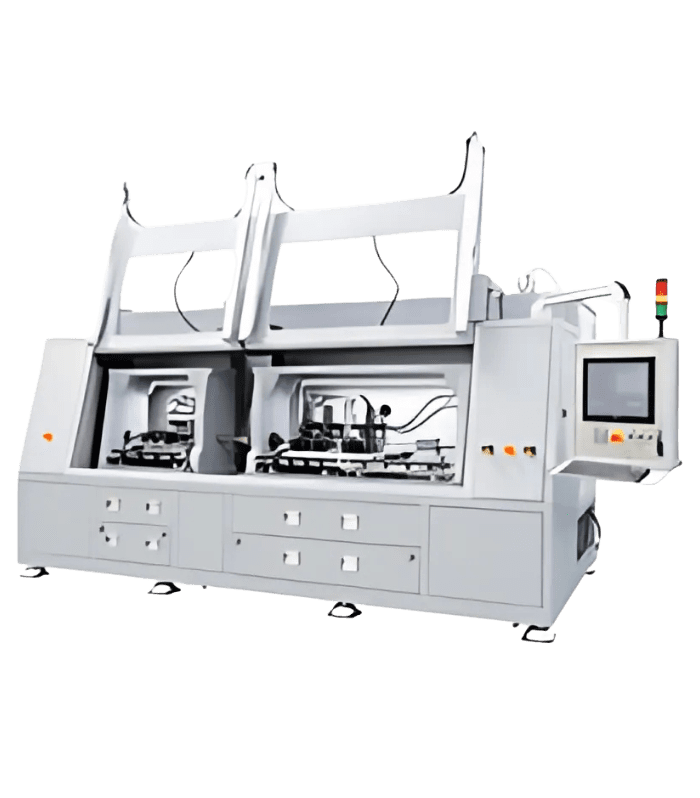

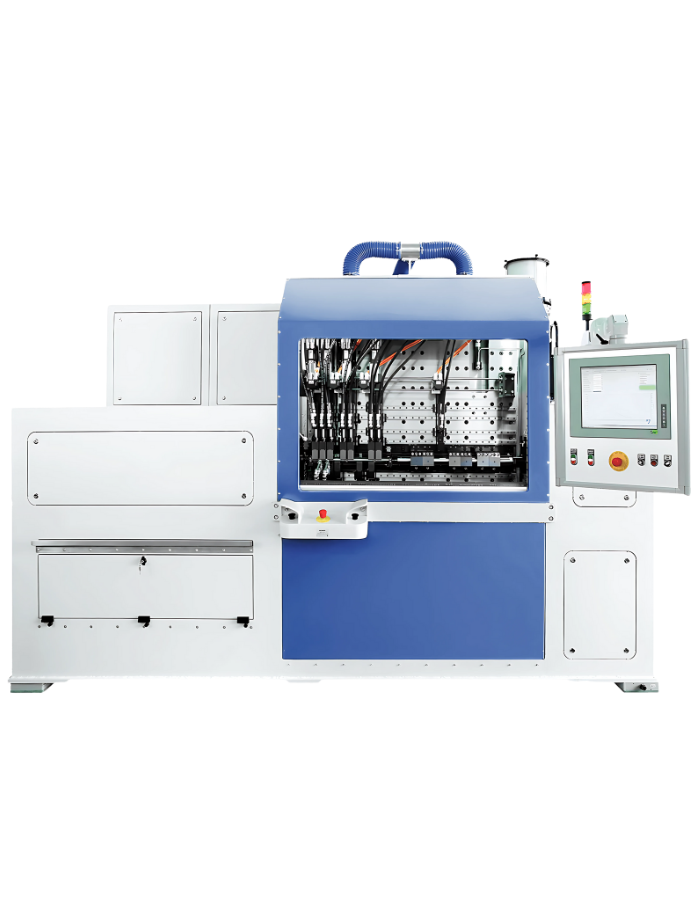

The autofrettage system is made up of two subassemblies that are integrated to create a single compact rig. One side of the rig holds the electric control cabinet and the hydraulic intensifier, or pressure generation system. The other half is intended to serve as a testing area. The chamber has an automated door in front of it, and the component may be seen through a safety lens in the protective door.

This rig is extremely safe since the protective door is locked and set to remain closed during the autofrettage procedure.

Performance Data

• Autofrettage pressure up to 12,000 bar.
• High component variability: injector nozzles, injection lines, pump heads
• Automatic tensioning of different rail types from 200 mm to 1,300 mm in length
• P+P support for fixture design and changing fixtures
• Various degrees of automation for efficient production
