Multi-channel LCR meter

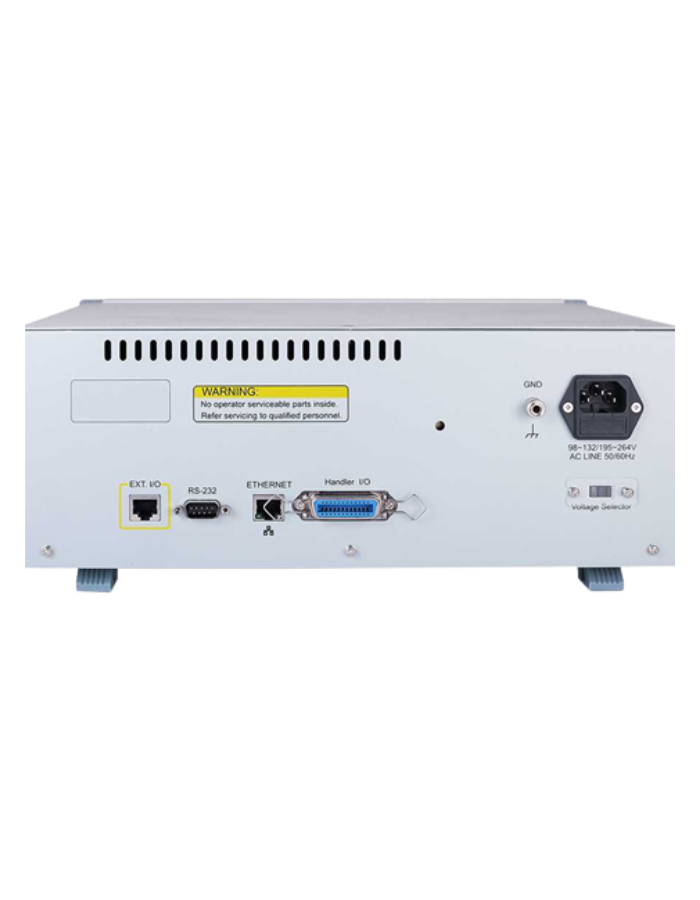

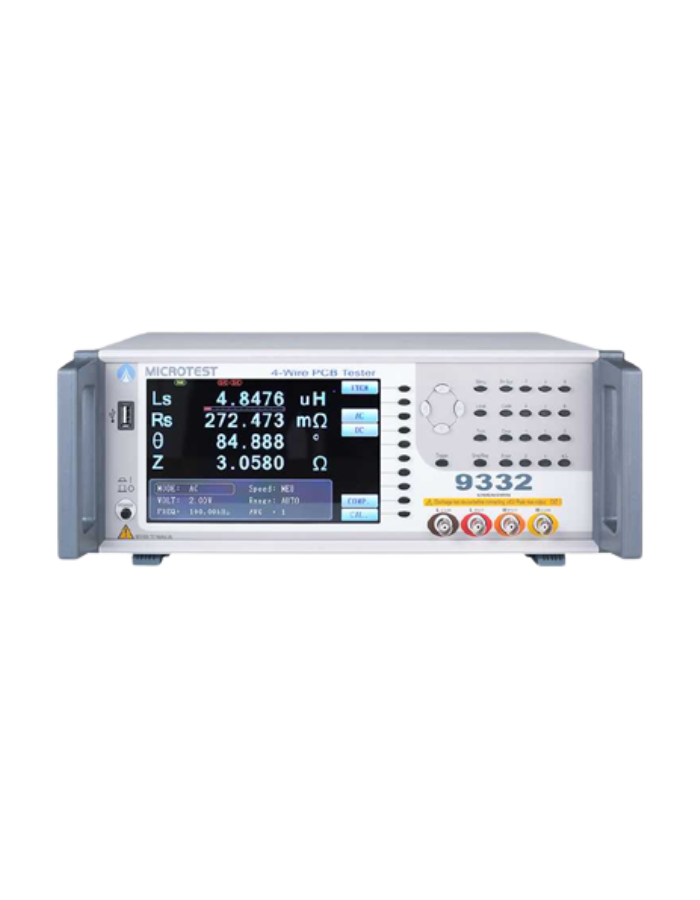

The MICROTEST 9332 is engineered for the electrical characteristic testing of circuit boards that utilize copper foil etching to create coil circuits. It accommodates multiple coil circuits on multi-layered boards with its 64 testing channels, allowing for the simultaneous testing of 32 coil sets. Parameters measured include inductance, impedance, AC and DC resistance, Q value, and other parameters, across a frequency range of 10Hz to 200kHz. The system supports PC connectivity for remote programming and data storage and can be integrated into specialized PCB testing equipment for fully or semi-automatic testing.
Features:
- 0.1% basic accuracy
- 64 test channels
- Test 32 sets of inductive impedance (Ls/Rs/DCR/Q)
- Can be used with pneumatic composite fixtures to perform multi-board (panel) tests
- Supports multi-board test modes and LCR value measurement mode
