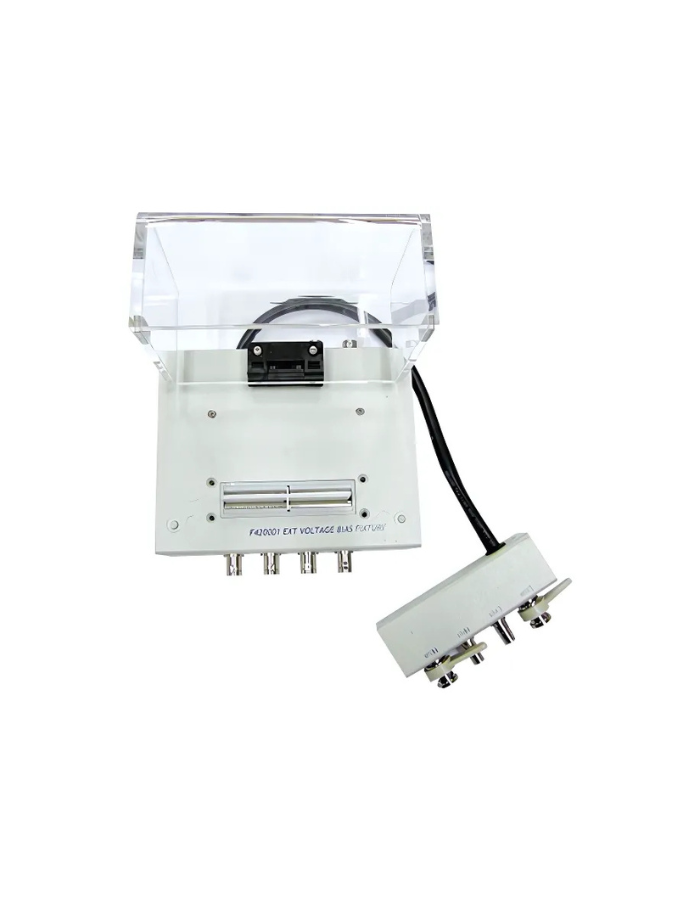

F420001 External Voltage Bias Fixture
- Terminal Connector：4-Terminal Pair, BNC
- DUT Connection：4-Terminal
- Dimensions (approx.)：150x97x145mm (W/H/D)
- Weight (approx.)： 829g
- Applicable Models： 6632、6630
- Frequency：DC to 1MHz
- Max. Voltage： ±200V peak max.(AC+DC)
- Operating Temperature： 0°C to 55°C
- DUT Size：Max.63mm、Min.3mm
