VMK – Vac – Series

VMK – Vac – Series

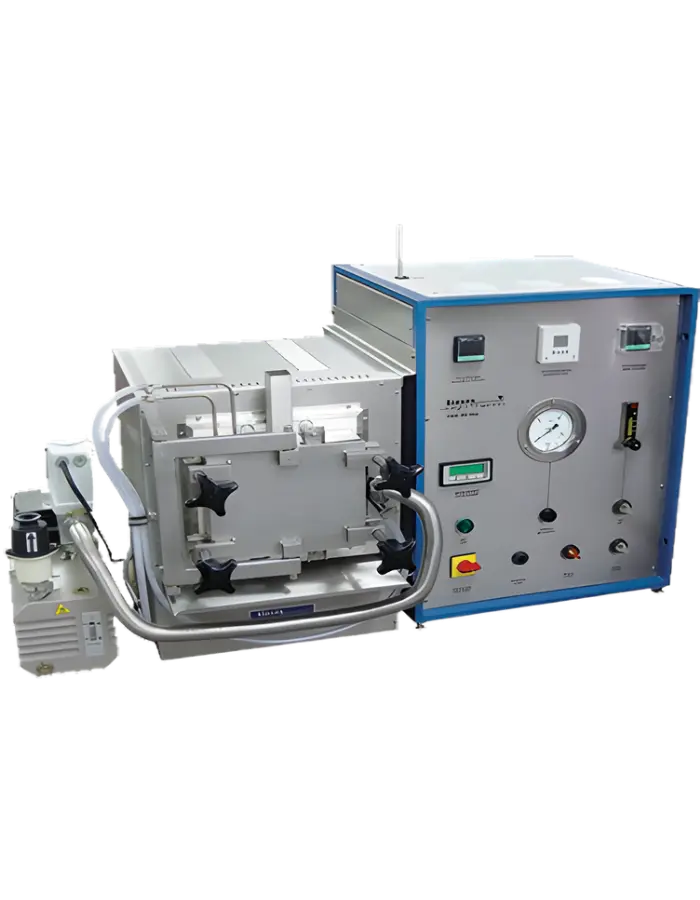

The Linn High Temp VMK-Vac-Series is a compact and efficient vacuum hot-wall laboratory furnace designed for fast heating cycles. It features a durable stainless-steel housing that provides excellent protection against corrosion and is equipped with a standard safety controller for secure operation. The furnace includes a ceramic fiber muffle for insulation and a metal alloy spiral heater embedded within the insulation, ensuring optimal performance and reliability.

Temperature measurement is precise with a Type K thermocouple housed in a ceramic protection tube. The VMK-Vac-Series offers the best ratio of space requirement to useful volume and achieves heating up to 1000°C in approximately 1 hour and 15 minutes, making it an ideal choice for laboratory applications.

Type Liter T max °C Useful chamber mm (w x d x h) kW
VMK-39-Vac 1,9 1050 135 x 170 x 80 2,2
VMK-80-Vac 4,0 1050 160 x 190 x 130 2,6
VMK-135-Vac 7,2 1050 200 x 260 x 140 3,5
VMK-250-Vac 12,2 1050 180 x 340 x 200 5,0
Standard Options Main Applications
  • Various programmers, documentation, visualization
  • Gas feeding device for vacuum
  • Burning device
  • Safety package
  • Gas warning system
  • Reinforced thermocouple
  • Inconel muffle for vacuum at temperatures higher than 400°C
  • Condensate trap
  • Swiveling door
  • Vacuum pumping station with vacuum measurement
  • Vacuum-tight laboratory and production furnace
  • Metal treatment and brazing
  • Battery research
  • Sensor production
  • Sensor testing
