HT – Vac – Series

HT – Vac – Series

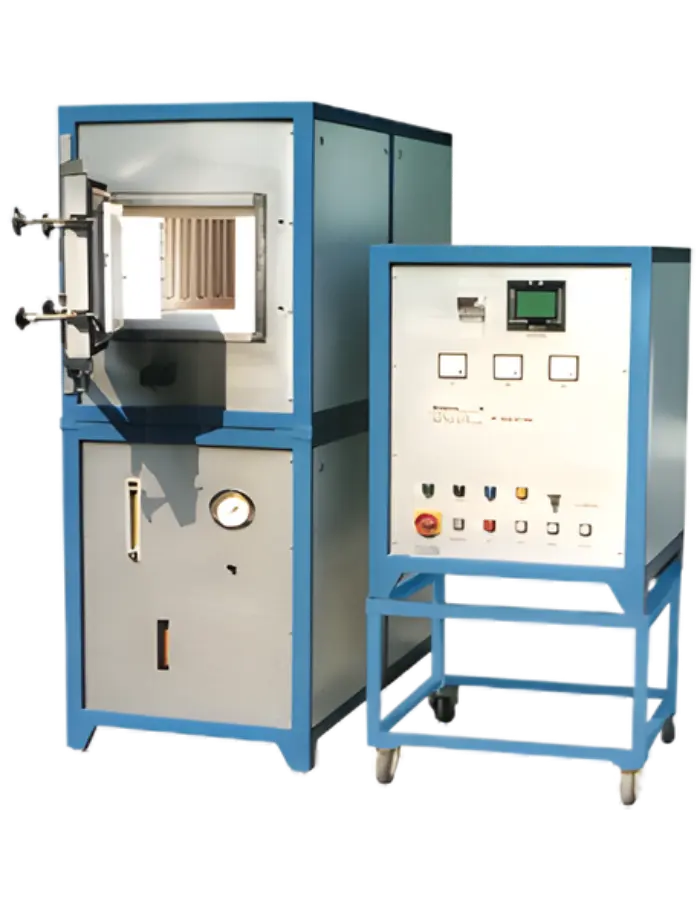

The Linn High Temp HT-Vac Series is a gastight, cold-wall modular vacuum furnace designed for fast heating cycles and features a double stainless-steel housing for enhanced durability and corrosion resistance. With a compact design, it offers an excellent ratio of space utilization to useful volume. The furnace can reach 1400°C in less than an hour and comes equipped with a standard safety controller for reliable operation. It includes a gas feeding device and a vacuum pumping station with vacuum measurement, ensuring precise process control.

The insulation consists of ceramic fiber boards, while U-shaped MoSi₂ ceramic heaters hang from the oven roof for efficient and uniform heating. Temperature measurement varies by model, with Type S (Pt/Rh) thermocouples in ceramic protection tubes for the HT 1400 and HT 1600, Type B (Pt/Rh) thermocouples for the HT 1800, and a 20/40PtRh thermocouple in a sapphire protection tube for the HT 1800 Plus. The furnace operates within a temperature range of 1400°C to 1820°C, making it an ideal choice for applications requiring precision, efficiency, and reliability in vacuum or controlled atmospheres.

Type Liter T max °C Useful chamber mm (w x d x h) kW
HT-1400-Vac 4,0 1400 130 x 190 x 160 3,5
HT-1400-M-Vac 12,5 1400 250 x 200 x 250 6,0
HT-1400-G-Vac 26,0 1400 250 x 350 x 300 9,0
HT-1400-GT-Vac 52,5 1400 250 x 700 x 300 16,0
HT-1600-Vac 4,0 1600 130 x 190 x 160 4,0
HT-1600-M-Vac 12,5 1600 250 x 200 x 250 6,0
HT-1600-G-Vac 26,0 1600 250 x 350 x 300 9,0
HT-1600-GT-Vac 52,5 1600 250 x 700 x 300 16,0
HT-1800-Vac 4,0 1750 130 x 190 x 160 4,0
HT-1800-M-Vac 12,5 1750 250 x 200 x 250 6,0
HT-1800-G-Vac 26,0 1750 250 x 350 x 300 9,0
HT-1800-GT-Vac 52,5 1750 250 x 700 x 300 16,0
HT-1800-Plus-Vac 3,0 1750 110 x 170 x 160 5,0
HT-1800-M-Plus-Vac 9,5 1820 230 x 180 x 230 8,0
HT-1800-G-Plus-Vac 21,0 1820 230 x 330 x 280 12,0
HT-1800-GT-Plus-Vac 44,0 1820 230 x 680 x 280 21,0
Standard Options Main Applications
  • Burning device
  • Safety package
  • Gas warning system
  • Condensate trap
  • Molybdenum heaters
  • Door guidance
  • Inspection glass
  • Bottle pressure reducer
  • Furnace underframe
  • Vacuum station with roots pump
  • Gastight laboratory and production furnace for sintering of electro ceramics and phosphors
  • Rapid prototyping of MIM and CIM parts
  • Research and production of nuclear fuel
  • Battery research
  • Debinding of MIM parts
  • Sensor production and testing
