FBV–VAC–Series

FBV–VAC–Series

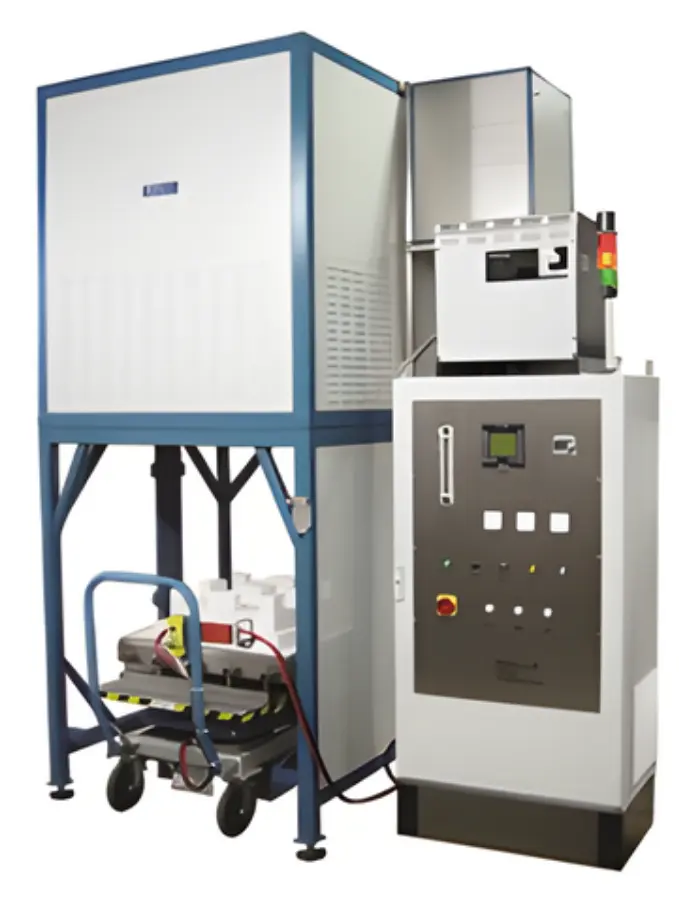

The Linn High Temp FBV-Vac Series is a vacuum-tight cold-wall bottom-loading oven designed for fast thermal cycles. It features a double stainless-steel housing and ceramic fiber board insulation (FBV), ensuring efficient heat retention. The heating system consists of U-shaped MoSi₂ ceramic heating elements suspended from the oven roof, providing four-sided heating for excellent temperature uniformity and high power.

This oven can operate at temperatures up to 1820°C, with precise temperature measurement using different thermocouples: Type S (1600°C) in a ceramic protection tube, Type B (1750°C) in a ceramic protection tube, and PtRh 20/40 (1820°C) in a sapphire protection tube. The heating elements vary based on the temperature range, including MoSi₂ (1300°C), Kanthal ER (1500°C), or metal molybdenum (1820°C). The bottom-loading design allows for easy loading and unloading, making it highly suitable for high-temperature vacuum applications that require rapid heating, high power, and consistent thermal performance.

Type Volume(L) T max °C kW
FBV-Vac 2-1000 1820 4-100
Standard Options Main Applications
  • Gas feeding device
  • Burning device
  • Safety package
  • Gas warning system
  • Condensate trap
  • Vacuum pumping station for 0.1 mbar with vacuum measurement
  • Vacuum station for 0.01 mbar – 0.005 mbar with roots pump
  • Gastight laboratory and production furnace for sintering of electro ceramics
  • Sintering of thick film sensors
