VMK-S-Series

VMK-S-Series

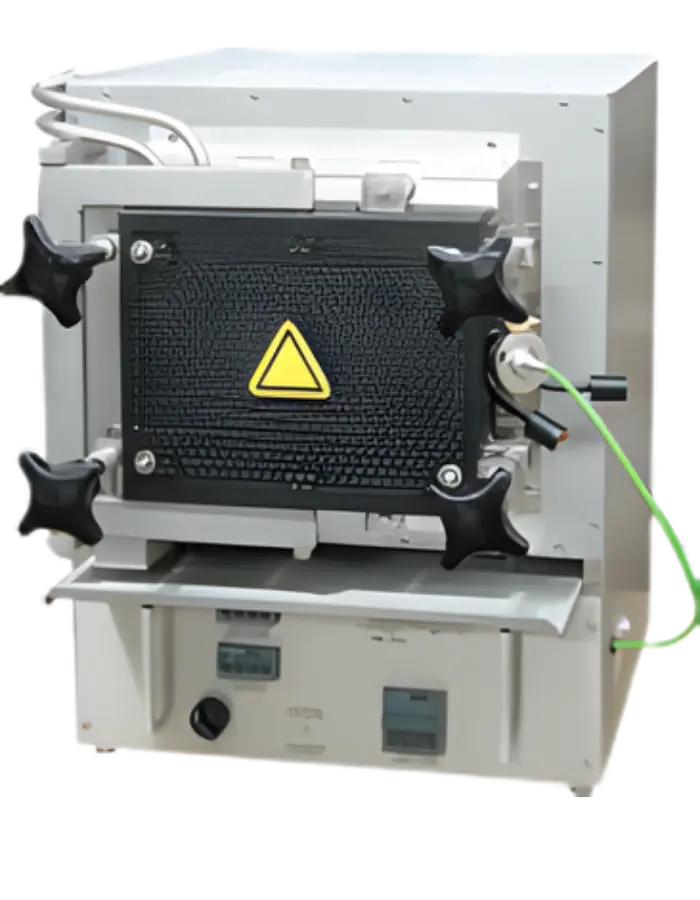

The Linn High Temp – VMK-S Series is a gastight hot-wall laboratory furnace designed for controlled atmosphere applications, featuring fast heating cycles and a durable stainless-steel housing for enhanced corrosion resistance. It utilizes a ceramic fiber muffle for efficient insulation and a metal alloy spiral heater embedded within the insulation to deliver rapid and uniform heating—reaching 1000 °C in less than one hour.

Temperature is accurately monitored using a Type K thermocouple housed in a ceramic protection tube, while a standard safety controller ensures secure operation. With an optimized space-to-useful volume ratio, the VMK-S Series is ideal for laboratory settings where performance, compact design, and corrosion protection are essential.

Type Volume (L) T max °C Useful chamber mm (w x d x h) kW
VMK-S 39 2,6 1050 150 x 180 x 95 1,9
VMK-S 80 5,2 1050 180 x 210 x 140 2,1
VMK-S 135 9,2 1050 220 x 280 x 150 3
VMK-S 250 15,0 1050 200 x 360 x 210 5
Standard Options Main Applications
  • Gas feeding device
  • Burning device
  • Safety package
  • Gas warning system
  • Reinforced thermocouple
  • Inconel muffle
  • Condensate trap
  • Swiveling door
  • Metal treatment under controlled atmosphere
  • Brazing processes
  • Pyrolysis
  • Battery research and development
  • Debinding of metal injection moulding (MIM) parts
  • Sensor production
  • Sensor testing
