T – Series

T – Series

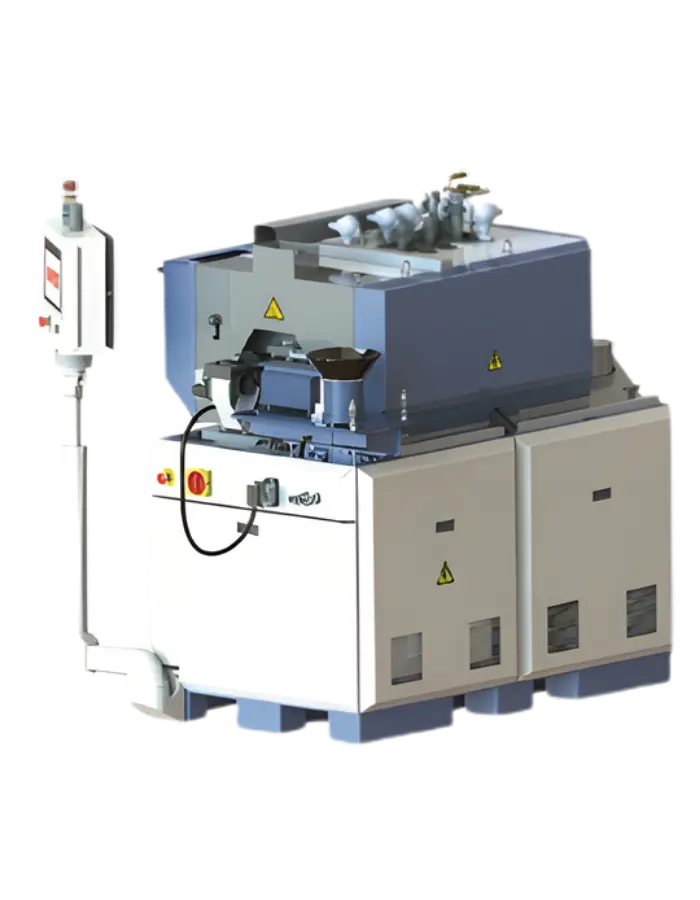

The Linn High Temp – T Series is a gastight continuous hardening furnace designed for operation under controlled atmospheres, featuring an integrated conveyor transport system and oil quench for efficient, high-throughput heat treatment processes. The furnace provides an exactly defined temperature profile and dwell times, making it ideal for consistent and repeatable results in production environments.

It is insulated with refractory light stones on the side walls and bottom, backed by microporous insulation, while the roof is lined with ceramic fibre boards for optimal thermal efficiency. Metal alloy spiral heaters, wound on ceramic tubes, deliver uniform heating throughout the chamber. Temperature control is maintained via a Type K thermocouple in a ceramic protection tube. The T Series is specifically designed for processes requiring precise heat treatment, reliable atmosphere control, and seamless material handling through automated conveyor transport.

Type Zones T max °C Belt width mm Channel height mm Heated length mm kW
T-9 3 930 55 15 900 8
T-30 3 930 100 40 900 20
Standard Options Main Applications
  • Increased Temperature of quenching bath to 160°C
  • Semi-automatic continuous production hardening furnace
  • Ideal for small precision items such as needles & mechanical watch parts
