KS-S-Series

KS-S-Series

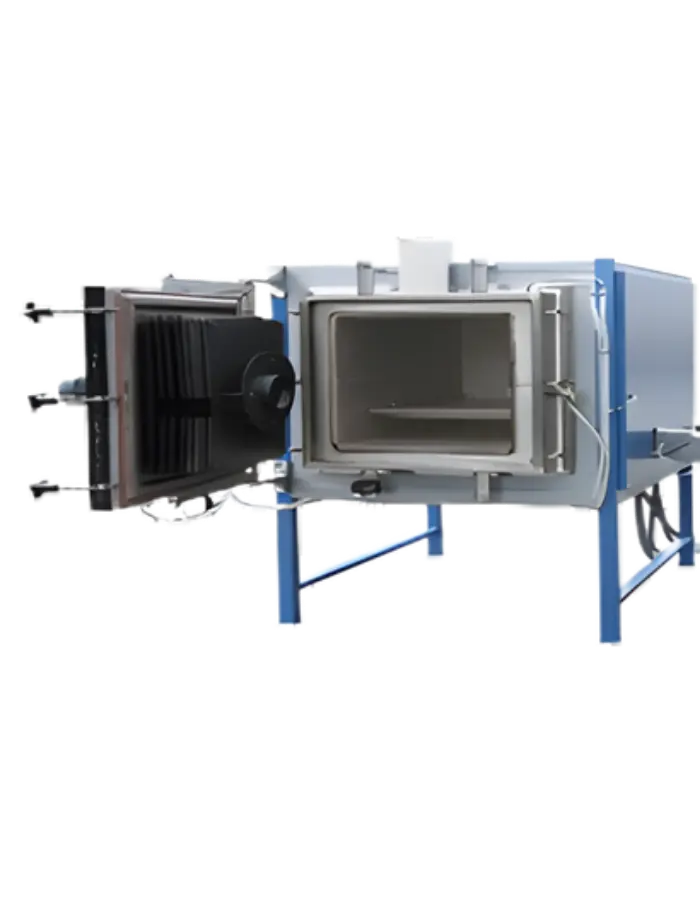

The Linn High Temp – KS-S Series is a compact, gastight hot-wall furnace designed for operation under controlled atmospheres, offering fast thermal cycles with a maximum temperature of 1200 °C. Its robust insulation system combines refractory light stones on the side walls and bottom with microporous back insulation, while the roof is insulated with ceramic fibre boards for optimal thermal efficiency.

The furnace is heated by metal alloy spiral elements, securely placed in insulation notches to ensure rapid and uniform heating—reaching 1000 °C in less than one hour. Temperature is precisely monitored using a Type K thermocouple housed in a ceramic protection tube, and a standard safety controller ensures secure operation. Designed for efficiency, the KS-S Series offers the best ratio of space requirement to useful volume, making it ideal for applications requiring fast, controlled heating in a compact footprint.

Type Volume (L) T max °C Useful chamber mm (w x d x h) kW
KS-80-S 69 1050 340 x 600 x 340 15
KS-160-S 166 1050 440 x 700 x 540 21
KS-240-S 245 1050 490 x 800 x 640 36
KS-480-S 462 1050 580 x 950 x 840 51
Standard Options Main Applications
  • 3-zone heating
  • Gas circulation
  • Change door (second door)
  • Gas feeding device
  • Burning device
  • Safety package
  • Gas warning system
  • Bottle pressure reducer
  • Fast cooling device
  • Inconel muffle
  • Condensate trap
  • Reduction processes
  • Brazing under controlled atmosphere
  • Nitrogen hardening
  • Pyrolyzing
  • Battery research
  • Debinding of metal injection moulding (MIM) parts
  • Lost foam casting (LFC) ceramic sensor production
  • Sensor testing
