HT – Graphite – Series

HT – Graphite – Series

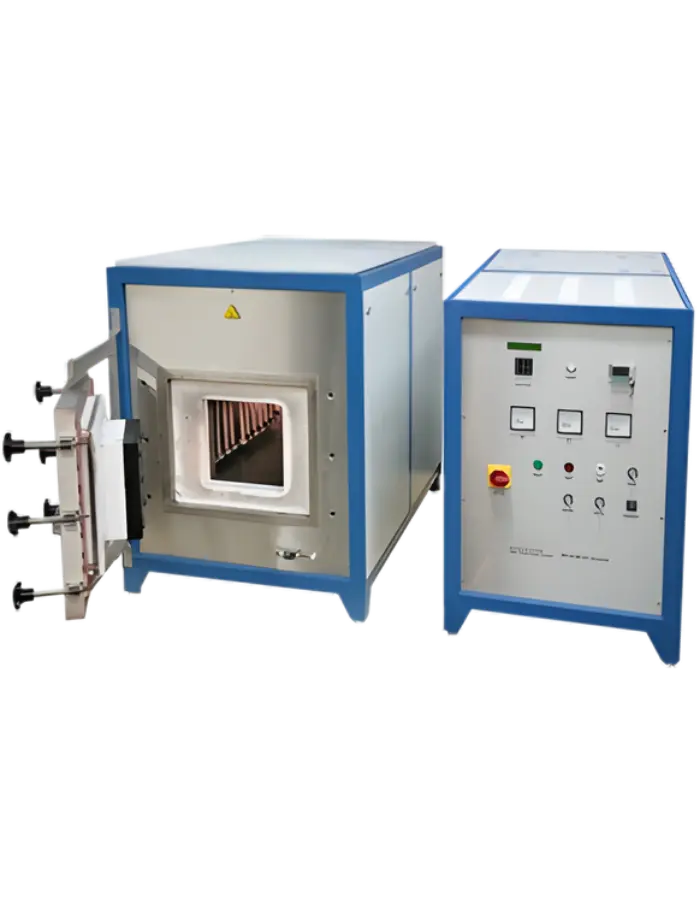

The Linn High Temp – HT – Graphite – Series is a gastight cold-wall modular furnace system engineered for fast cycles in controlled atmospheres, delivering high-temperature performance with exceptional reliability. Designed with a double stainless-steel housing for corrosion protection, the furnace features rigid graphite board back insulation combined with ceramic fiber boards to ensure excellent thermal efficiency.

Heating is achieved through U-shaped heaters made from extruded graphite rods, securely suspended from the oven roof for uniform heat distribution. Temperature is precisely monitored using a Type C (W/Re) thermocouple, housed in a molybdenum protection tube, capable of withstanding the extreme conditions of HT 1900 models. With the ability to reach 1400 °C in less than one hour, the HT Series offers a good space-to-useful volume ratio and includes a standard safety controller, making it an ideal choice for advanced laboratory and production applications requiring high precision and durability.

Type Volume (L) T max °C Useful chamber mm (w x d x h) kW
HT-1900 3 1950 110 x 130 x 160 11
HT-1900-M 8 1950 230 x 230 x 180 14
HT-1900-G 21 1950 220 x 270 x 280 21
HT-1900-GT 44 1950 220 x 270 x 670 28
Standard Options Main Applications
  • Gas feeding device
  • Burning device
  • Safety package
  • Gas warning system
  • Condensate trap
  • Door guidance
  • Inspection glass
  • Bottle pressure reducer
  • Furnace underframe
  • Extended temperature up to 2100°C
  • Sintering of electro ceramics & phosphors
  • Sintering of rapid prototyping MIM & CIM parts
  • Research and production of nuclear fuel
  • Sintering of cutting tools
  • Battery research and development
  • Debinding of MIM parts
  • Sensor production
  • Sensor testing
