FBV/GBV Series

FBV/GBV Series

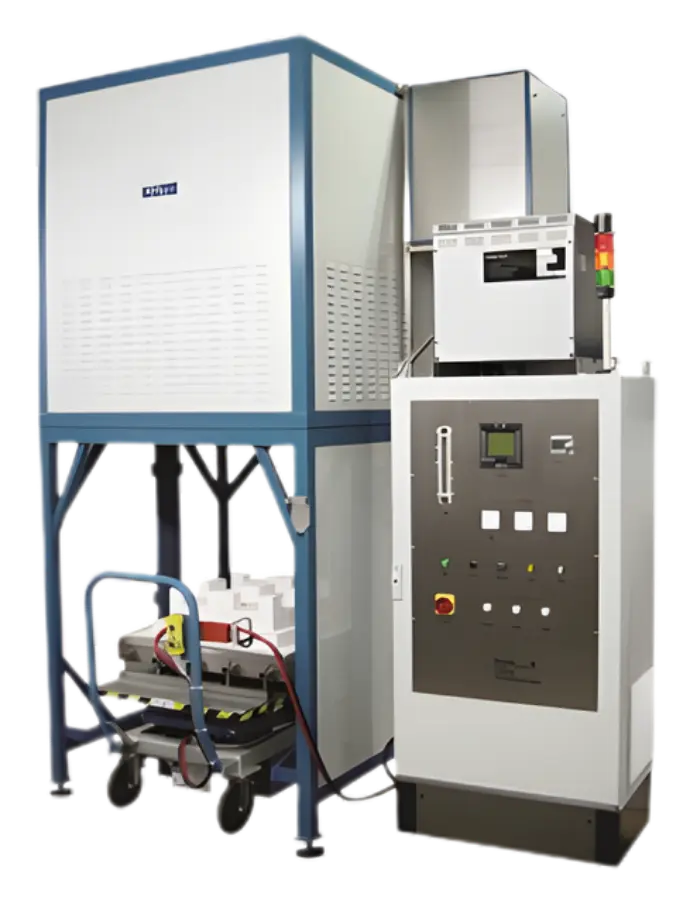

The Linn High Temp – FBV/GBV Series Bottom-Loader is a gastight cold-wall furnace system engineered for rapid thermal cycles under controlled atmospheres, featuring a double stainless-steel housing for corrosion resistance and effortless loading and unloading. Uniform, high-power heating is achieved by U-shaped elements on all four sides—suspended from the roof and available in ceramic (MoSi₂), metal alloys (FeCrAl, Mo, W), or graphite—while two insulation options cater to different temperature ranges: FBV with ceramic-fiber boards for up to 1820 °C, and GBV with rigid graphite felt plus ceramic-fiber boards for up to 2400 °C.

Precise temperature control is ensured by a variety of sensors—Type S, B, or C thermocouples in ceramic or sapphire tubes, a Type C (WRe/W) thermocouple in a molybdenum tube (to 2300 °C), and an optional pyrometer (to 2400 °C). With its bottom-loader design, four-side heating, and flexible sensor options, the HT Series Bottom-Loader delivers exceptional temperature uniformity and fast turnaround for demanding laboratory and production applications.

Type Volume (L) T max °C kW
FBV 2 – 1000 1820 4 – 100
GBV 2 – 1000 2400 8 – 160
Standard Options Main Applications
  • Gas feeding device
  • Burning device
  • Safety package
  • Gas warning system
  • Condensate trap
  • Gastight laboratory and production furnace for sintering of electro ceramics
  • Thick film sensors
  • Pyrolysis and graphitization (GBV)
