6-SL-Series

6-SL-Series

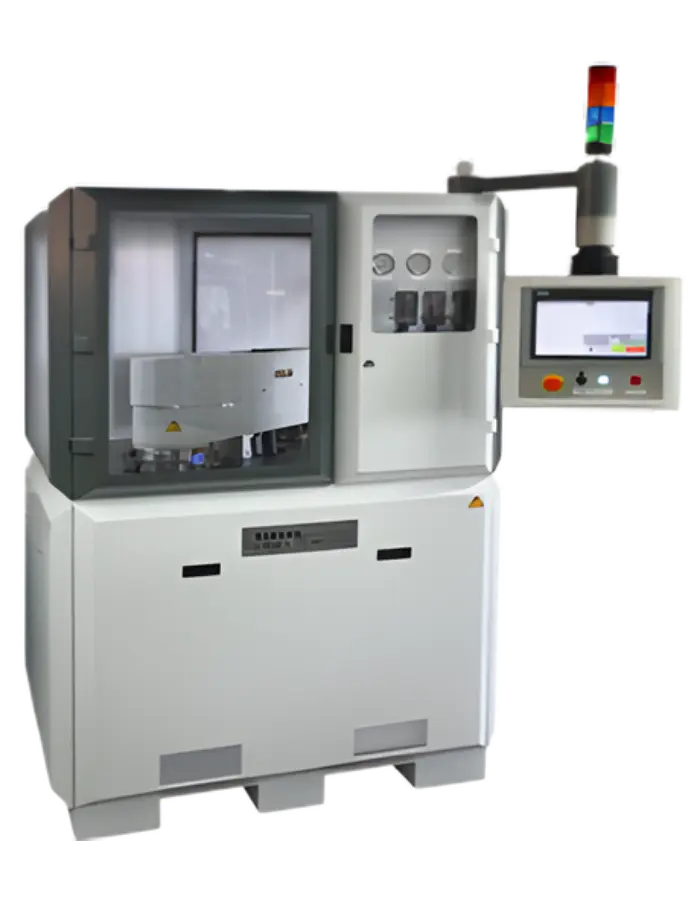

The Linn High Temp – 6-SL Series is a gastight double annealing muffle furnace designed for controlled atmosphere applications, operating at temperatures up to 650 °C. It features vacuum-formed ceramic fibre half shells for high-efficiency insulation and is equipped with FeCrAl wire heaters embedded in the insulation for uniform and reliable heating. Temperature is precisely monitored using a Type K (NiCr/Ni) thermocouple.

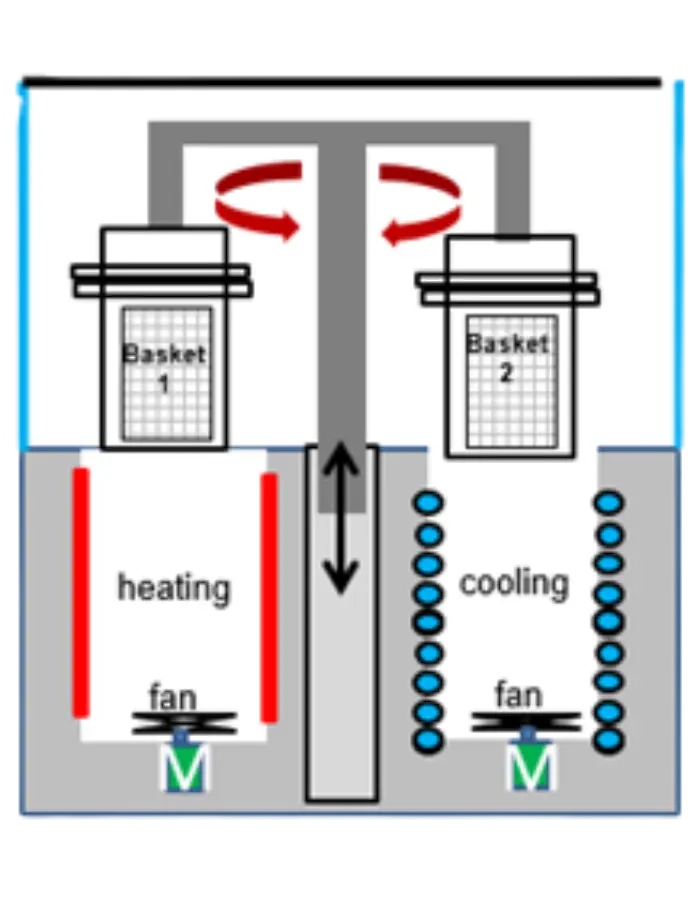

The system includes two gastight muffles with forced convection, enhancing heat transfer and ensuring excellent temperature uniformity. With a diameter of 270 mm and a heated length of 450 mm, the furnace is also integrated with dedicated heating and cooling stations, making it ideal for fast, efficient annealing cycles in both laboratory and production environments.

Main application:
Semiautomatic annealing and cooling of small metal parts

Type T max °C Zones Inner – φ mm Heated length mm kW
6 – SL-25 650 1 270 450 7,0
