VMK Series

VMK Series

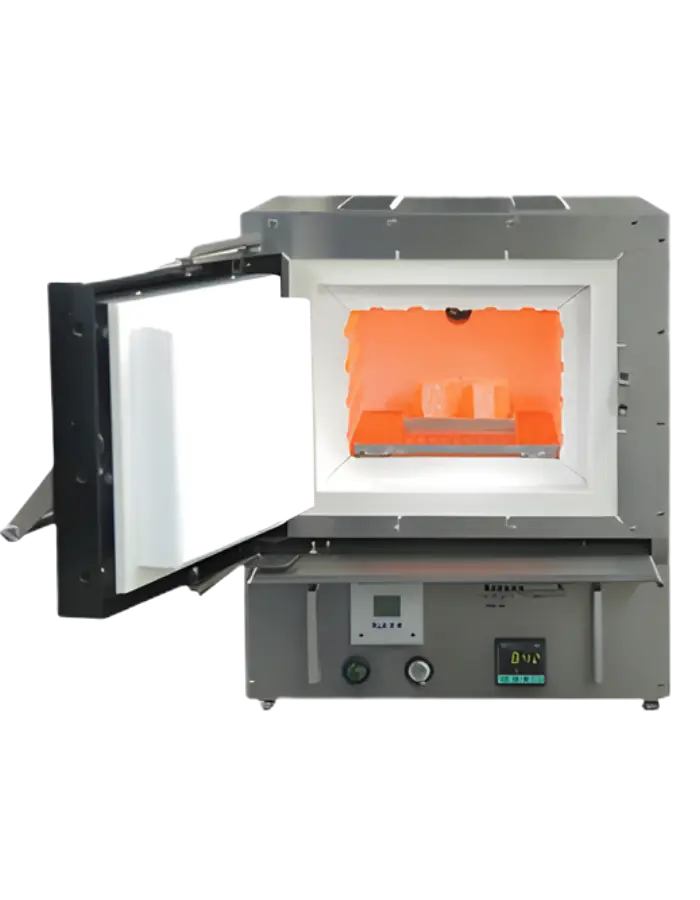

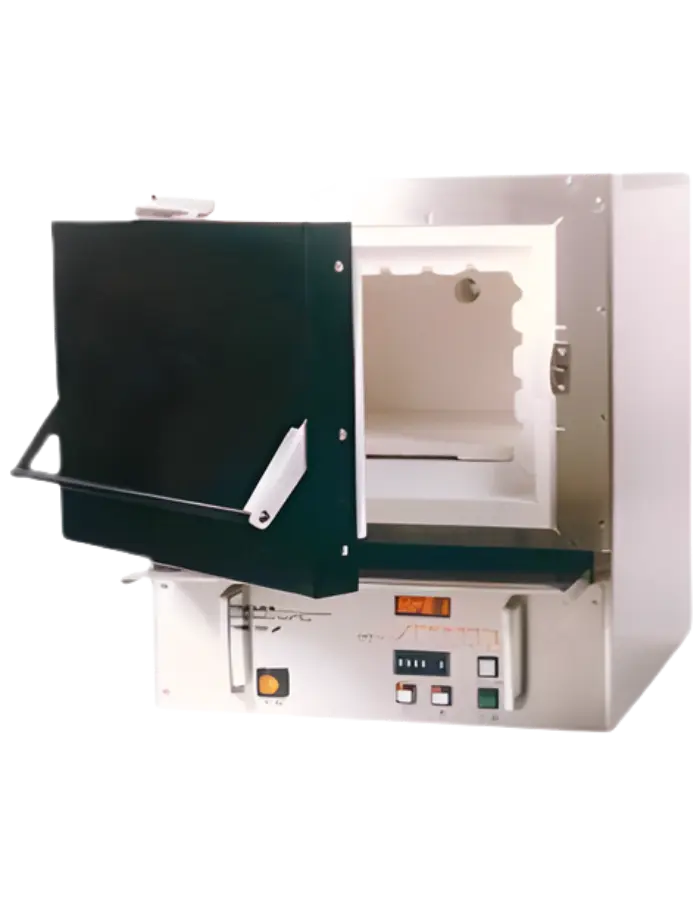

The Linn High Temp Chamber Furnace from the VMK-Series is specifically designed for rapid cycling and high efficiency. Featuring a robust stainless-steel housing that protects against corrosion, this furnace incorporates a ceramic bottom plate for added insulation durability. The heater is embedded within the insulation for optimal thermal performance, while temperature is accurately measured using a Type-K thermocouple (NiCr/Ni).

Capable of reaching a maximum temperature of 1200°C, this laboratory furnace boasts the best ratio of usable space to overall footprint. Unique in its all-stainless-steel design, it requires complete replacement of both the heater and insulation in case of failure, ensuring longevity and reliability in demanding applications.

Standard Options:

  • Control: Different temperature controllers, data recording/li>
  • Type S(Pt/Rh thermocouple)
  • Gas/Safety: Protective gas purge with inert gas
  • Charge/Operation: Charge racks and accessories
  • Inspection glass for visualization of process control
  • Exhaust unit
  • Thermal post combustion

Main application:

  • Generally, used in laboratory, quality control and analytics
Type Volume (L) T max °C Useful chamber mm kW
VMK-22 2,2 1200 130 x 170 x 100 0,9
VMK-39 3,9 1200 180 x 200 x 110 1,3
VMK-80 7,7 1200 210 x 230 x 160 2,1
VMK-135 13,5 1200 250 x 300 x 180 2,6
VMK-250 25 1200 250 x 400 x 250 3,75
