VMK-HT-Series

VMK-HT-Series

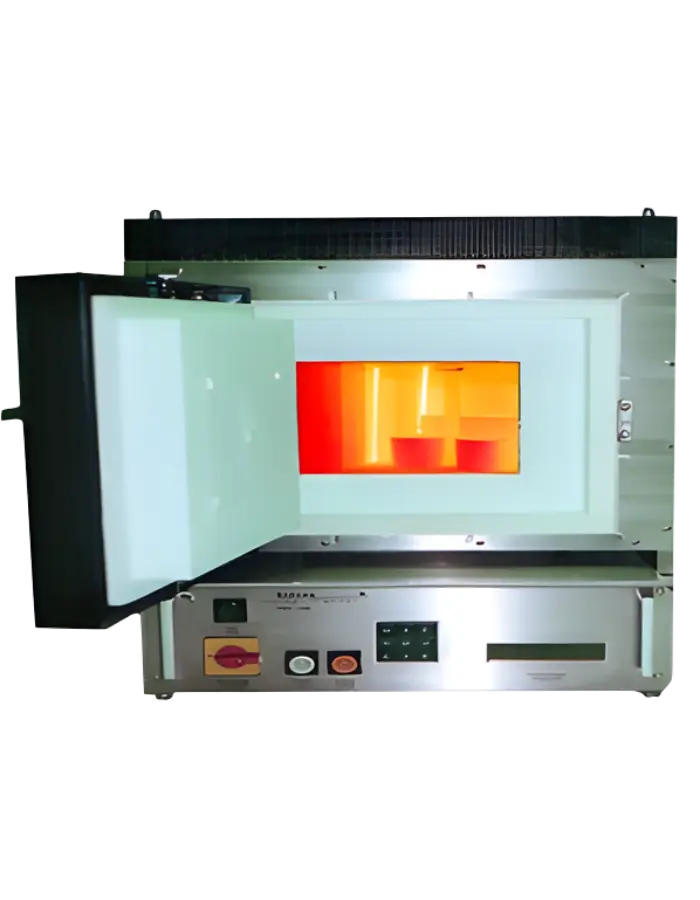

The Linn High Temp Chamber Furnace from the VMK-HT Series is designed for high-performance applications, with a ceramic fiber muffle and ceramic fiber boards providing better insulation. The VMK 1400 model uses a metal alloy meander heater, while the VMK 1600 and 1800 variants use advanced ceramic heaters (MoSi2) with maximum temperatures of 1400°C, 1600°C, and 1820°C.

The VMK 1400 and VMK 1600 models utilize a Type-S thermocouple housed in a ceramic protection tube, ensuring durability and accurate readings in high-temperature environments. For the VMK 1800 model, a PtRh (20/40) thermocouple is used, which is enclosed in a sapphire protection tube to provide enhanced thermal stability and performance at elevated temperatures.

The VMK-HT Series, which features a standard safety controller and can heat to 1400°C in less than half an hour, combines efficiency, safety, and durability for a wide range of industrial applications.

Type Volume (L) T max °C Useful chamber mm kW
VMK-1400 6,9 1400 170 x 270 x 150 3,5
VMK-1600 6,9 1600 170 x 270 x 150 3,5
VMK-1600-G 12 1600 175 x 340 x 200 5
VMK-1800 4 1800 150 x 240 x 110 4
VMK-1800-G 9 1800 150 x 330 x 180 5

Standard Options:

  • Control: Different temperature controller, data recording/li>
  • Gas/Safety: Protective gas purge with inert gases
  • Charge/Operation: Charge racks and accessories
  • Inspection glass for visualization of process
  • Exhaust treatment: Exhaust unit, thermal post combustion

Main application:

  • High temperature laboratory for ceramic and glass research
  • sensor production and testing
  • production of small parts with high temperature ceramics like Aluminum oxide (Al2O3), Zirconium oxide (ZrO2), Aluminum titanate (Al2TiO5)
