KK-H-Series

KK-H-Series

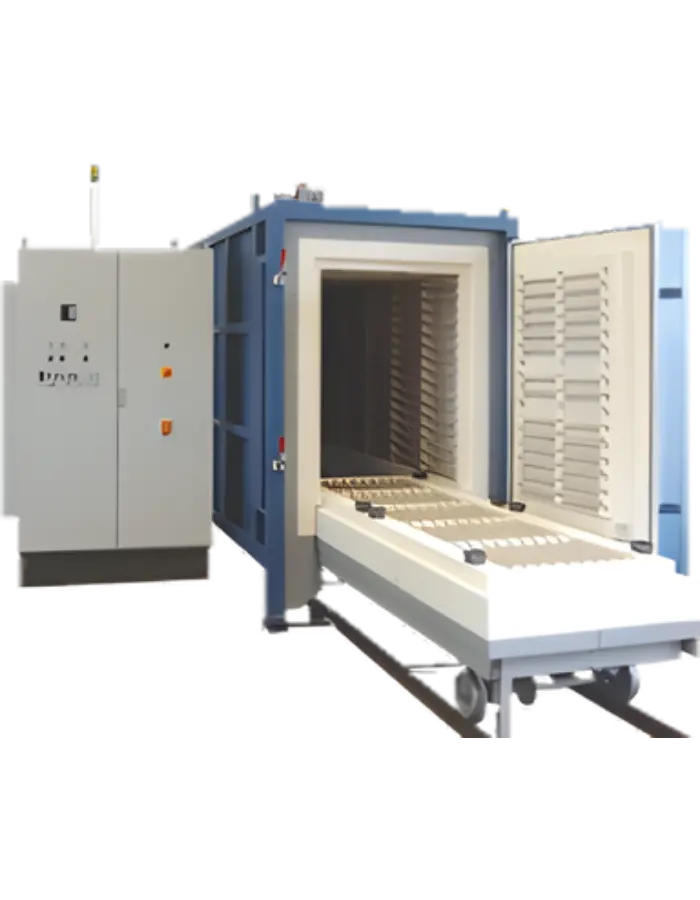

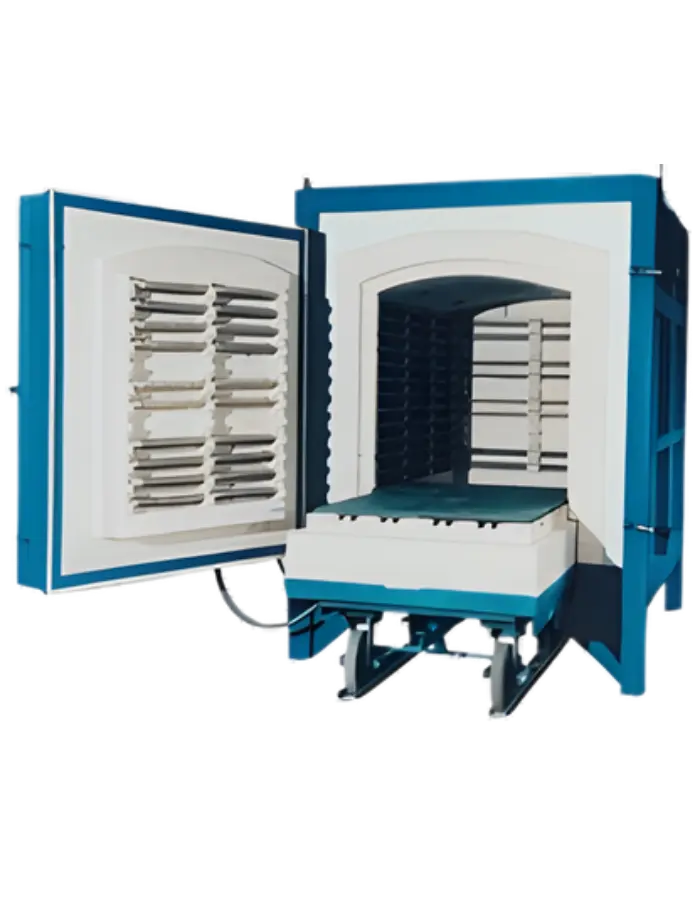

The Linn High Temp KK-H-Series chamber furnace, also known as the Boogie hearth furnace, is a powerful production kiln with an emphasis on temperature consistency. This furnace operates efficiently thanks to superior insulation made of ceramic light stone and energy-saving microporous board back insulation.

It is outfitted with a high-quality metallic spiral wire heater made of an aluminium-chromium-iron alloy (AlCrFe) wound on ceramic tubes for dependable performance. A Type S thermocouple (PtRh/Pt) can measure temperatures up to 1280°C and 1340°C. This furnace is not appropriate for metal hardening, but it is ideal for a wide range of other high-temperature applications.

Standard Options:

  • Control: Different temperature controller, data recording.
  • Temperature and cycle time second boogie hearth.
  • Exhaust treatment: Exhaust unit/Exhaust flaps, thermal post combustion.
  • Separately controlled bogie hearth bottom heating

Main application:

  • Burning-in of wash-coat on the heterogenic catalyst
  • Glazing of porcelain
  • Sintering of electro ceramics
Type Volume (L) T max °C Useful chamber mm kW
KK-H-1000-L 1050 1280 850 x 1450 x 840 70
KK-H-2000-L 1850 1280 850 x 1950 x 1120 120
KK-H-3000-L 2750 1280 850 x 2900 x 1120 160
KK-H-1000 1050 1340 850 x 1450 x 840 70
KK-H-2000 1850 1340 850 x 1950 x 1120 120
KK-H-3000 2750 1340 850 x 2900 x 1120 160
