KK-DH Series

KK-DH Series

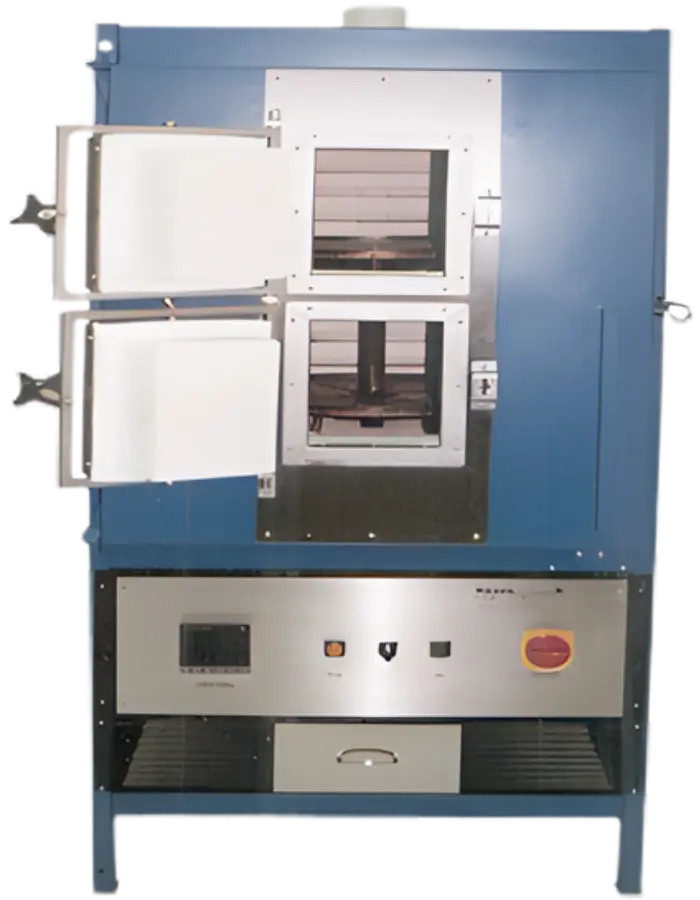

The KK-DH Series by Linn High Temp is a high-performance rotary hearth air furnace, designed for efficient and continuous operation. It features additional loading/unloading doors that minimize heat loss, enabling seamless reloading by a single operator or robot.

The furnace is insulated with a combination of ceramic light stone and microporous silica for optimal thermal efficiency. Heating is provided by durable spirals of Ferron-chromium-aluminium wire, ensuring reliable high-temperature operation. Temperature is precisely monitored using a Type K thermocouple housed in a ceramic protection tube, supporting operation up to 1100 °C.

Standard Options:

  • Control: Different temperature controllers, data recording
  • Exhaust treatment

Main application:

  • For continuous processes, especially dewaxing, sintering and preheating of lost-wax casting moulds.
  • Preheating for forging.
Type Volume (L) T max °C Useful chamber mm kW Trays Height of trays mm
KK-DH-80 80 1100 400 x 400 x 480 7,5 2 200
KK-DH-170 170 1100 460 x 610 x 590 15 2 250
KK-DH-260 260 1100 610 x 610 x 700 18 2 300
KK-DH-1000 1060 1100 1000 x 1000 x 1060 43 3 300
