HT-Eco-Series

HT-Eco-Series

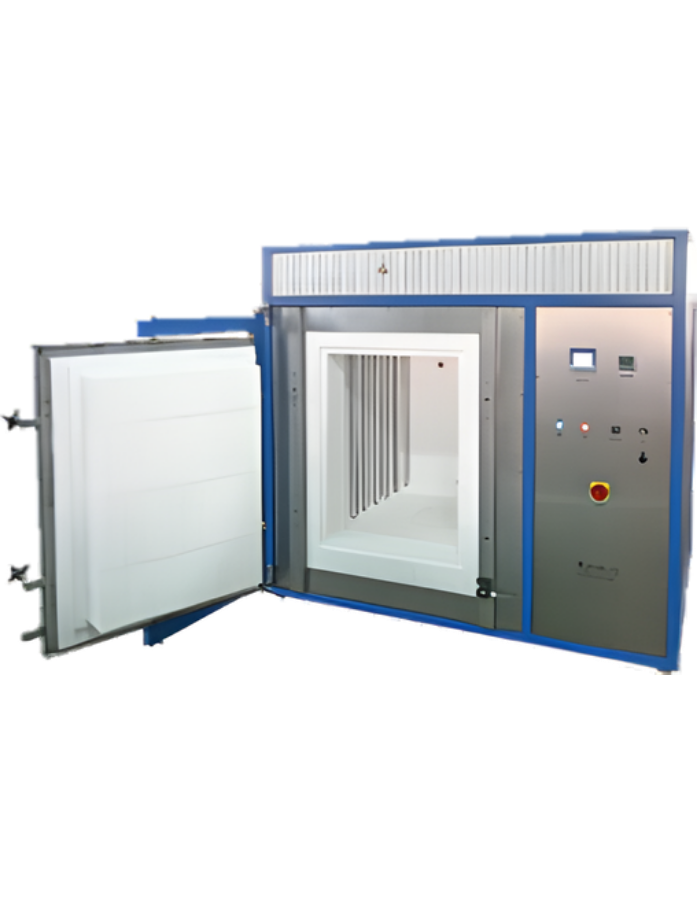

The Linn High Temp Chamber Furnace from the Air HT Eco range is engineered to deliver peak performance and efficiency. It has high-quality ceramic fibreboard insulation, which ensures good thermal retention. This furnace, fitted with modern ceramic heaters (MoSi2), can reach maximum temperatures of 1600°C, 1750°C, and 1800°C.

Temperature measurement is conducted using specialized thermocouples tailored to each model’s requirements. The HT-1600-ECO model is equipped with a Type S (PtRh/Pt) thermocouple, suitable for high-temperature accuracy and stability. The HT-1800-ECO utilizes a Type B (PtRh/PtRh) thermocouple, offering enhanced performance in even higher temperature ranges. For the HT-1800-ECO-Plus, a PtRh20/PtRh40 thermocouple is employed, providing superior thermal resistance and precision in extreme conditions.

Type Volume (L) T max °C Useful chamber mm kW
HT-1600-ECO-40 40 1600 320 x 400 x 320 10
HT-1600-ECO-60 60 1600 375 x 400 x 400 14
HT-1600-ECO-120 120 1600 450 x 530 x 500 21
HT-1600-ECO-180 180 1600 500 x 600 x 600 30
HT-1600-ECO-270 270 1600 600 x 750 x 600 40
HT-1600-ECO-390 390 1600 600 x 800 x 810 45
HT-1800-ECO-40 40 1750 320 x 400 x 320 10
HT-1800-ECO-60 60 1750 375 x 400 x 400 14
HT-1800-ECO-120 120 1750 450 x 530 x 500 21
HT-1800-ECO-180 180 1750 500 x 600 x 600 30
HT-1800-ECO-270 270 1750 600 x 750 x 600 40
HT-1800-ECO-390 390 1750 600 x 800 x 810 45
HT-1800-ECO-Plus-40 40 1800 320 x 400 x 320 12
HT-1800-ECO-Plus-60 60 1800 375 x 400 x 400 16
HT-1800-ECO-Plus-120 120 1800 450 x 530 x 500 25
HT-1800-ECO-Plus-180 180 1800 500 x 600 x 600 35
HT-1800-ECO-Plus-270 270 1800 600 x 750 x 600 45
HT-1800-ECO-Plus-390 390 1800 600 x 800 x 810 50

Standard Options:

  • Control: Different temperature controller, data recording, trailing thermocouple
  • Temperature and cycle time: Increased power
  • Gas/Safety: Protective gas purge with inert gases
  • Charge/operation: Charge racks and accessories
  • Inspection glass for visualization of process
  • Exhaust treatment: Exhaust unit, thermal post combustion

Main application:

  • Production of high-temperature ceramics like Aluminum oxide (Al2O3), zirconium oxide (ZrO2), aluminum titanate Al2TiO5)
  • Used for artificial bone replacement
  • Milling systems
  • Ballistic protection
  • Lambda probes and sanitary regulator discs
