PC-3011 Ⅲ Saturated Pressure Cooker Test Chamber (PCT Chamber)
Used For:
- Evaluation test of surface treatment of lead pins,
materials, plating, etc. - Accelerated deterioration test of materials related
to various coatings.
Download the Brochure
Share on facebook
Share on twitter
Share on whatsapp
Share on email
- High Performance Dual Chamber System
- Equipped with high-precision PID control system
- Chamber size: Φ240xD410 mm
- Wide test condition setting range
- 105.0～133.3℃ (at 100%RH)
- 110.0～140.0℃ (at 85%RH)
- 113.6～144.4℃ (at 75%RH)
- Temperature control accuracy: ±0.5°C
- Working pressure range: 0.019～0.208MPa
- Working time range: 300 hours, continuously
- 4 units of bias terminals
- Automatic water supply system
- Door safety interlock & burn prevention cover using resin
- Pressure safety valve
- Over-pressure prevention
- Over-heat prevention
- Low water cut off device
- Feed-water failure detector
- Leakage breaker (with O.C.)
- Breaker for heater
- Fuse
- Safety door system
- (Door lock during operation)
- Self-diagnosis function
- Negative pressure prevention device
Accessories List

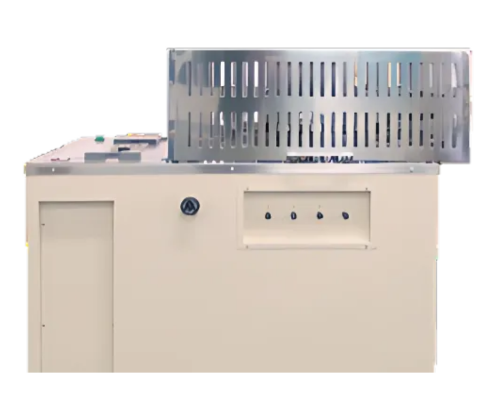

Safety Cover
A stainless-steel cover is attached to the opening and closing part of the lid.
Stainless Steel Basket
- PC-242HS-A: W165×D310×H30 mm
- PC-305Ⅲ: φ240×H30 mm
- PC-305SⅢ: φ210×H30 mm
Temperature Recorder
- Temperature display range: 0℃ to 200℃
- Recording paper: W60 mm
- Dimensions: W96×D314×H144 mm

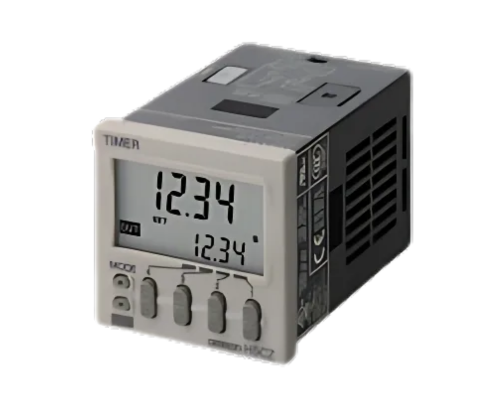

Automatic Starter
- Start time can be set according to desired end time.
- Applicable models: PC-305Ⅲ / SⅢ / 3011Ⅲ
